Manual Window Regulator

FRONT MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Inner garnish
2. Regulator handle
3. Front door trim
4. Front door speaker
5. Front door glass




3. Remove the nuts and the bolts.

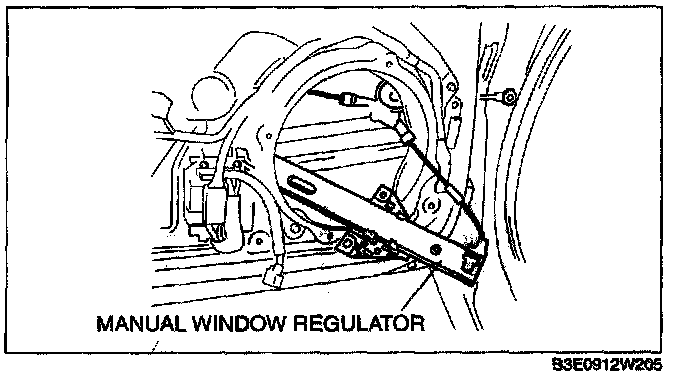

4. Remove the front manual window regulator through the speaker installation hole.
5. Install in the reverse order of removal.
