Front Door Glass Removal/Installation
- Adjust the door glass position as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Disconnect the negative battery cable. (Vehicles with power window system)
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION
)
- Remove the regulator handle. (Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION
.)
NOTE:
- For installing the front door glass, the front door speaker must be removed to align the glass edge with the glass run channel by hand, through the speaker installation hole.

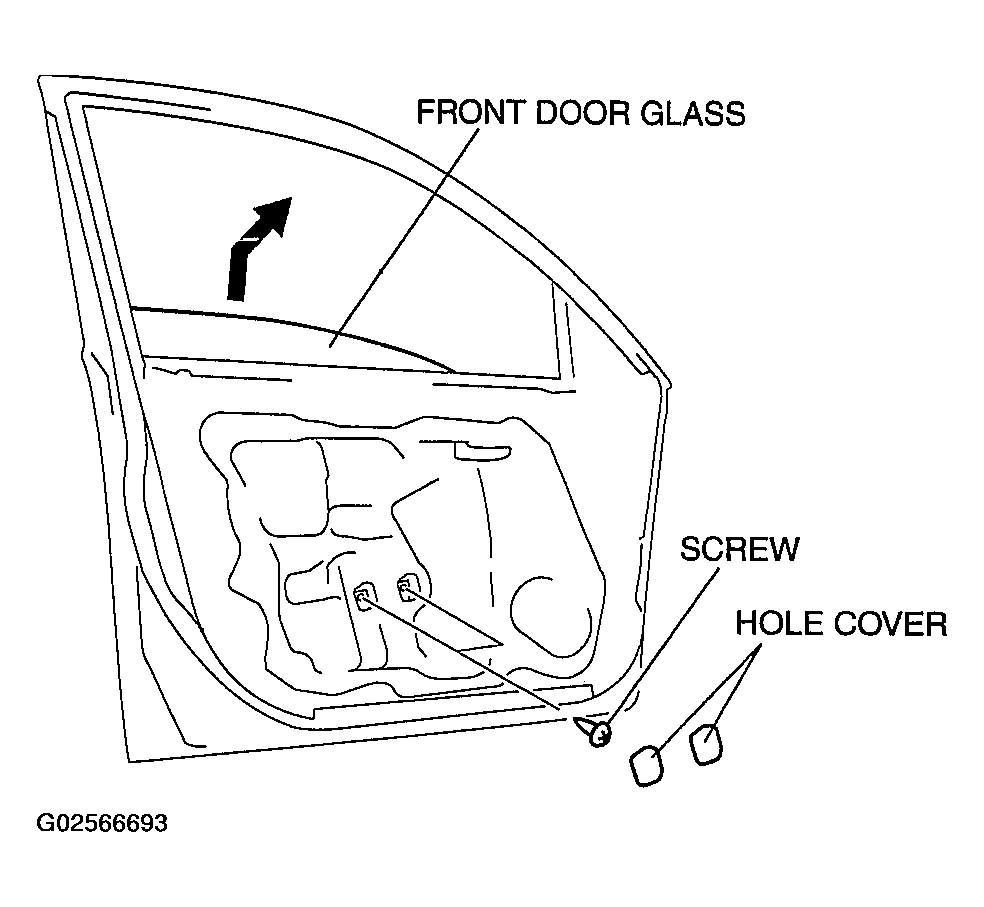

- Remove the hole cover.
- Remove the screws.
- Lift the front door glass up and remove it while tilting it in the direction of the arrow.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
