Power Outer Mirror Assembly/Disassembly: Notes

  1. Disassemble in the order indicated in the illustration.

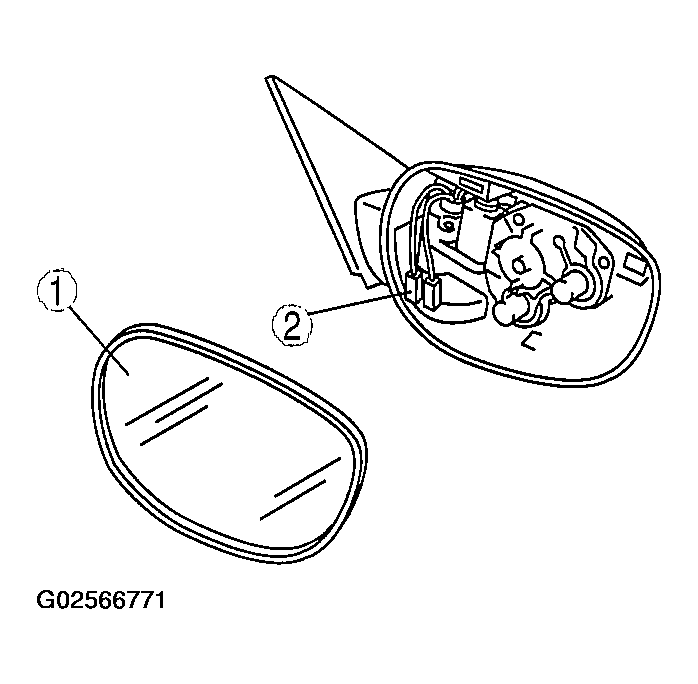

    Fig 1: Power Outer Mirror Assembly/Disassembly
    G02566771Courtesy of MAZDA MOTORS CORP.

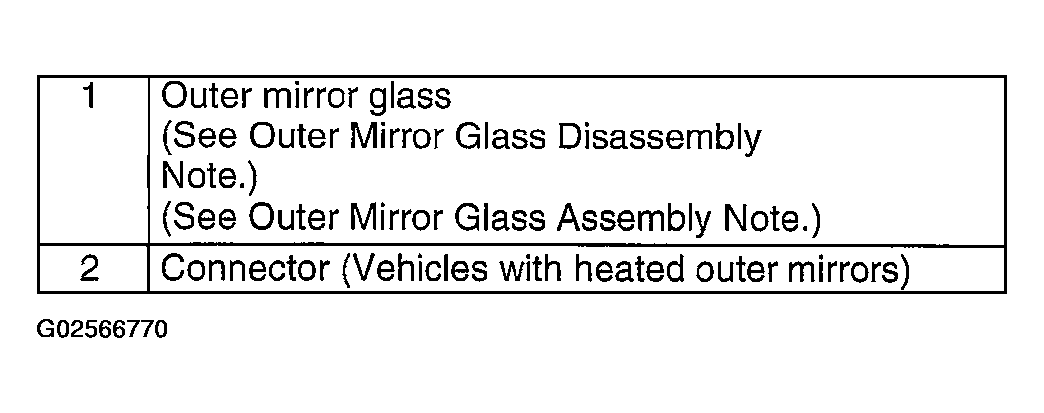

    Fig 2: Power Outer Mirror Disassembly Order
    G02566770Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
