Outer Mirror Glass Disassembly Note

  1. Press area A of the mirror glass so that area B moves outward.

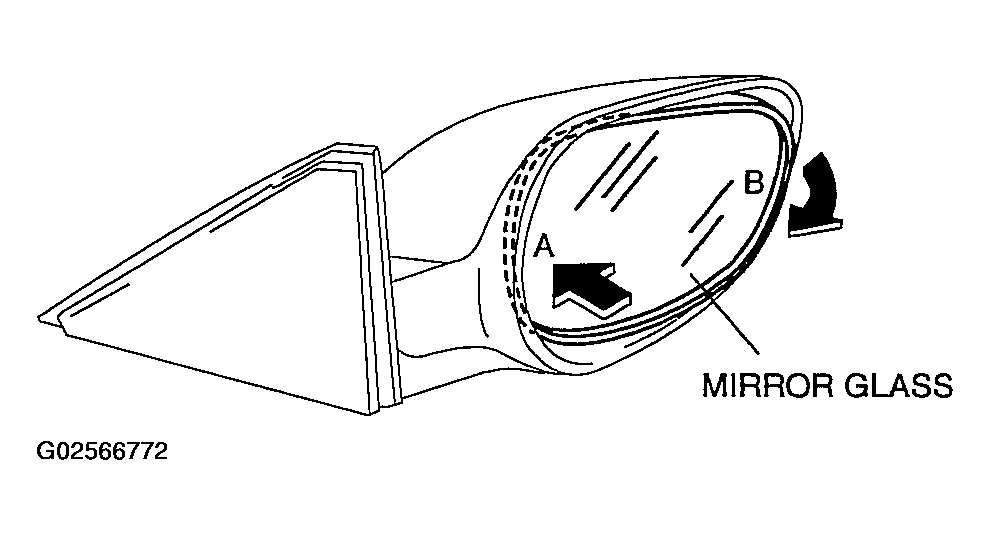

    Fig 1: Removing Mirror Glass (1 Of 2)
    G02566772Courtesy of MAZDA MOTORS CORP.
  2. Detach pin A while lifting up the inside of the mirror glass holder.
  3. Pull out the mirror glass holder and detach pins B.
  4. Remove the mirror glass holder and the mirror glass as a single unit.

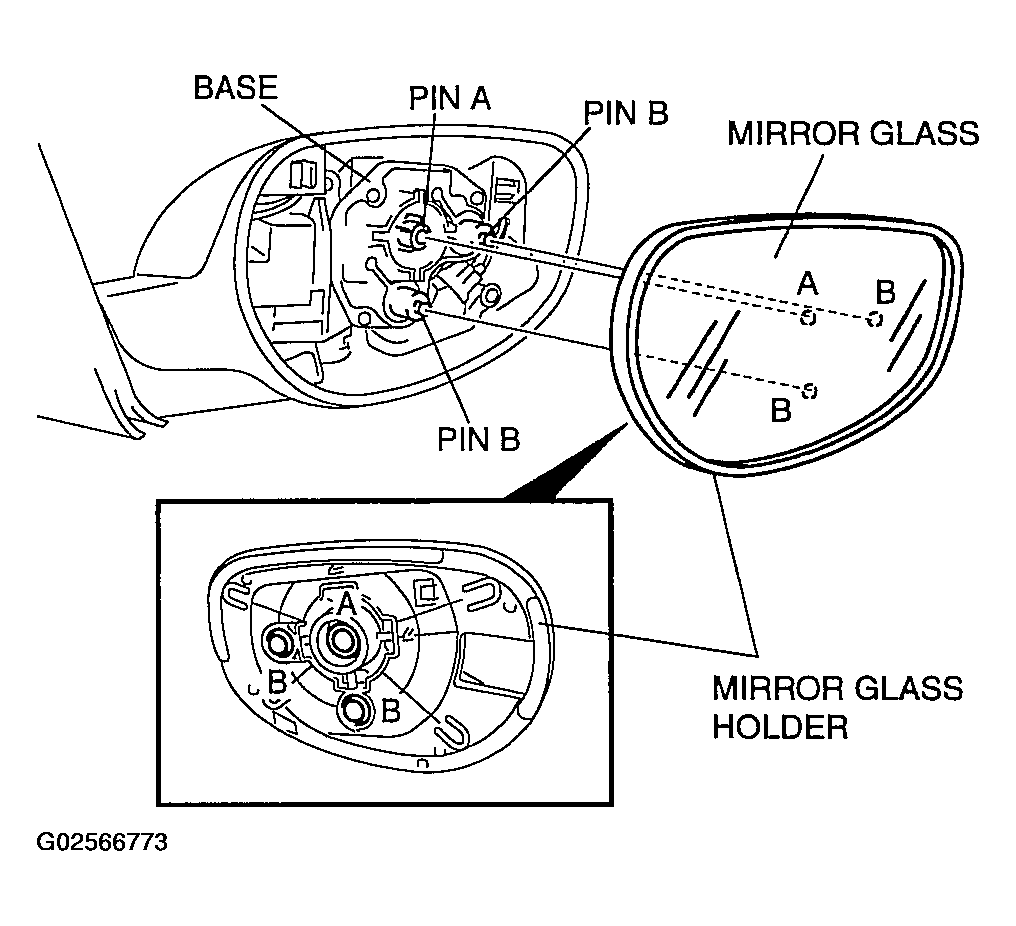

    Fig 2: Removing Mirror Glass (2 Of 2)
    G02566773Courtesy of MAZDA MOTORS CORP.
