Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals.
    • If not as specified, replace the power outer mirror switch.

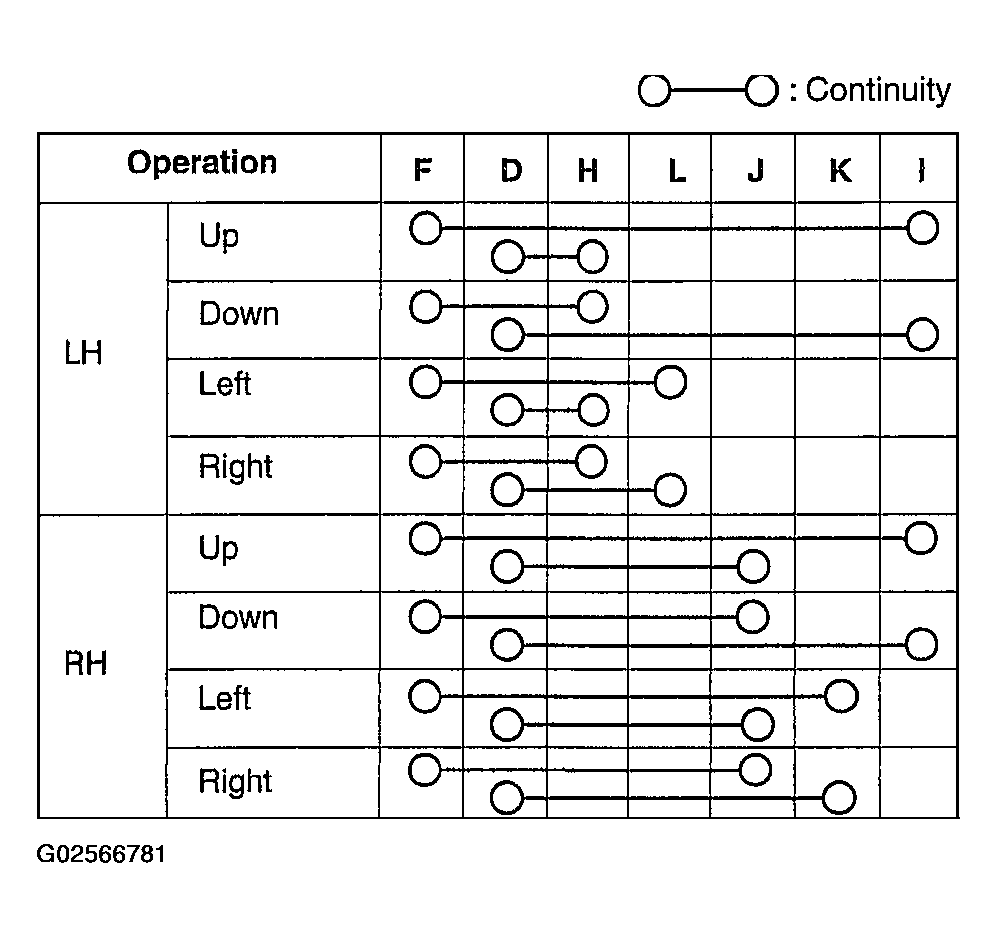

      Fig 1: Power Outer Mirror Switch Continuity Table
      G02566781Courtesy of MAZDA MOTORS CORP.

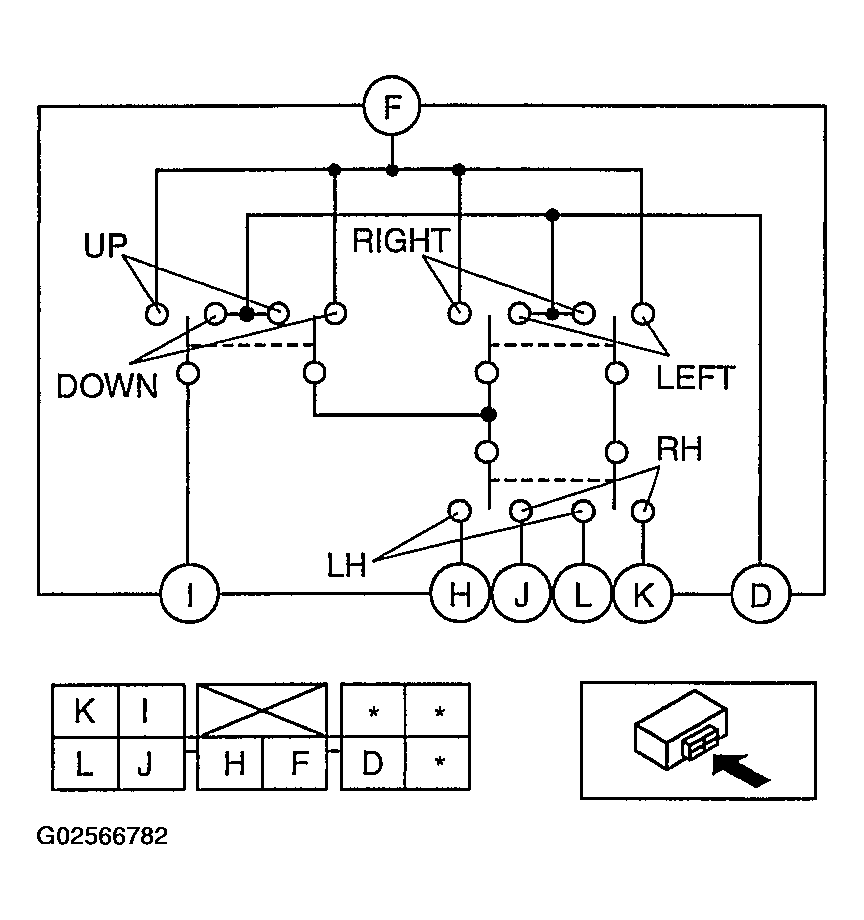

      Fig 2: Power Outer Mirror Switch Circuit Diagram
      G02566782Courtesy of MAZDA MOTORS CORP.
