Power Window Motor Inspection

Apply battery positive voltage and connect ground to power window motor terminals E and F, and then inspect the power window motor operation.
- If the power window motor does not operate as indicated in the table, replace it.

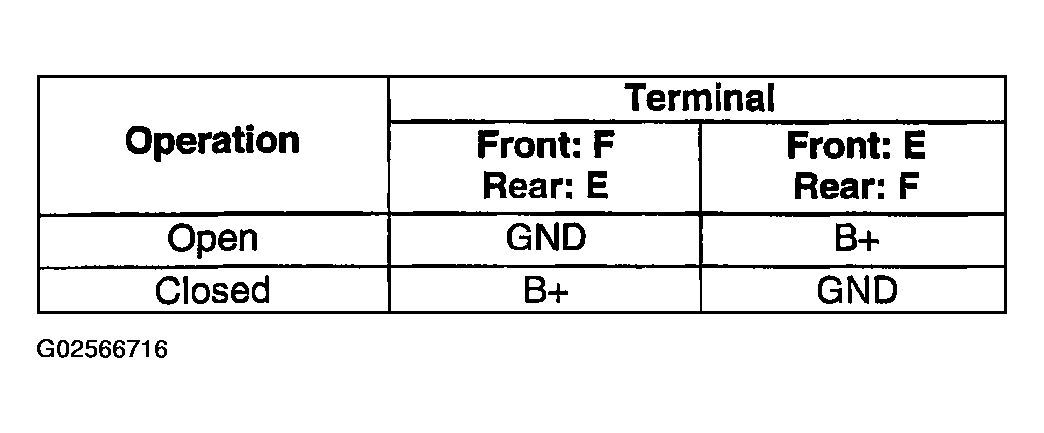

  Fig 1: Operating Condition Table Of Power Window Motor
  Courtesy of MAZDA MOTORS CORP.

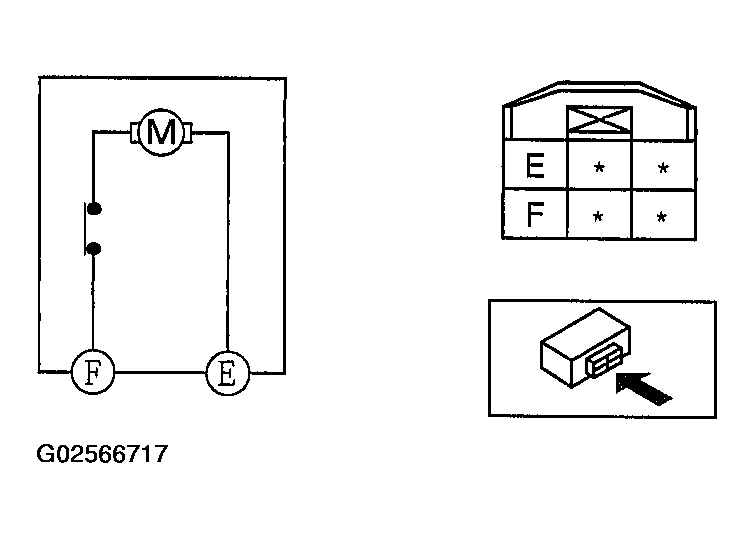

  Fig 2: Identifying Power Window Motor Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
