Not Reusing Windshield

NOTE:
  • For the areas of the sealant that are difficult to cut, use the SST  (piano wire) and follow the procedure under "Reusing Windshield".
  1. Cut out the sealant all around the glass using a sealant remover.
  2. Remove the sealant by pulling it off.
  3. Remove the windshield.

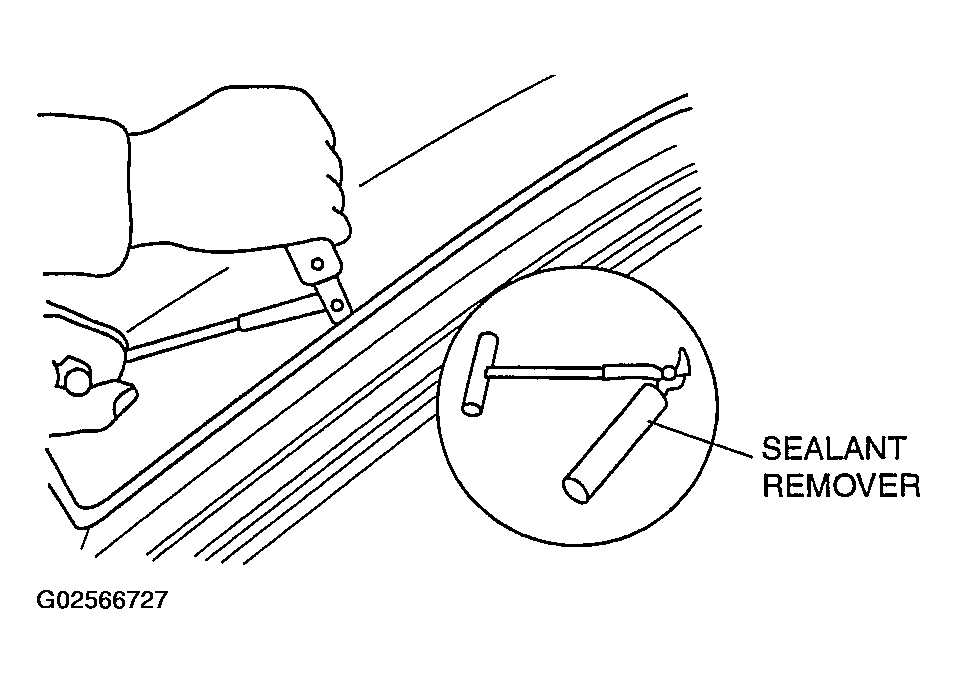

    Fig 1: Cutting Sealant All Around Glass Using Sealant Remover
    G02566727Courtesy of MAZDA MOTORS CORP.
