Reusing Windshield

NOTE:

Before removing the windshield from the body, mark the position of the windshield by affixing tape to the windshield and body panel.

Make a hole through the sealant from the inside of the vehicle using an awl, avoiding the pins.

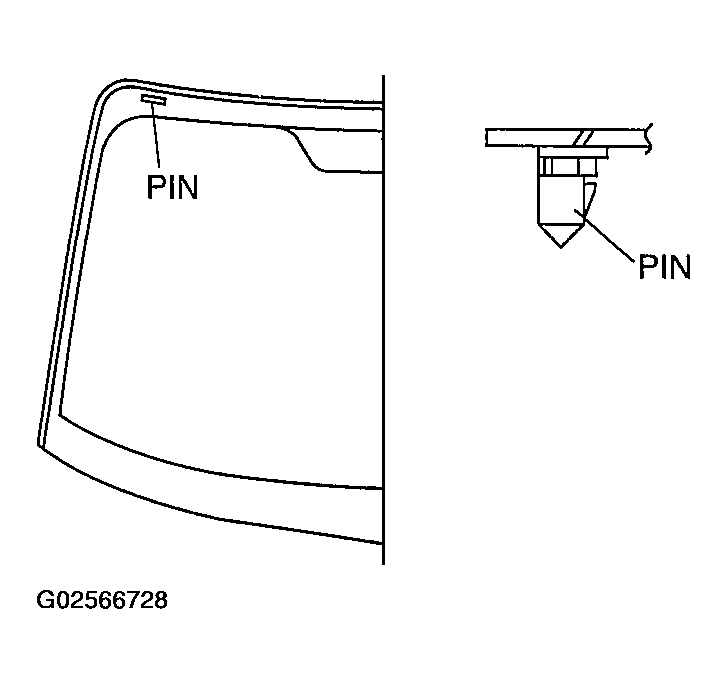

Fig 1: Locating Windshield Pin
Courtesy of MAZDA MOTORS CORP.
Pass the SST (piano wire), cut to sufficient length, through the hole.
WARNING:
- Using the SST (piano wire) with bare hands can cause injury. Always wear gloves when using the SST (piano wire).
Wind each end of the SST (piano wire) around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking due to localized heating.

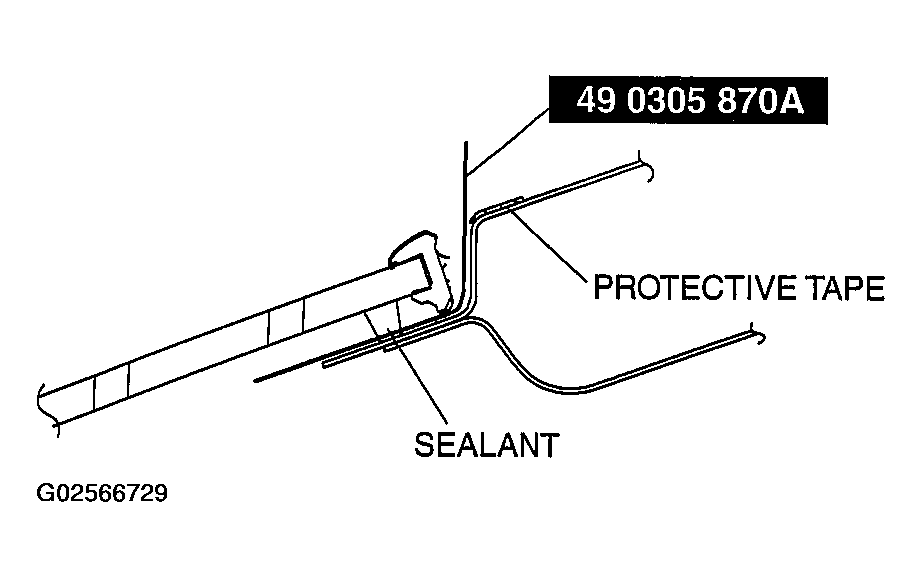

  Fig 2: Cutting Sealant Using Piano Wire (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.
Fix one end of the SST (piano wire), and while pulling the other end, cut the sealant around the windshield.
NOTE:
- As the upper part of the pin adheres to the sealant, cut it using the SST (piano wire).

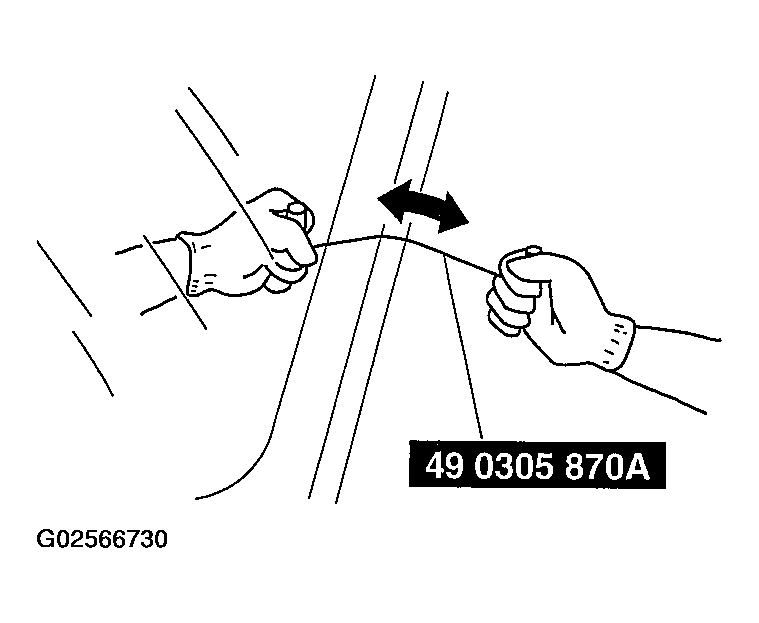

  Fig 3: Cutting Sealant Using Piano Wire (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
Cut the pins out.
Remove the windshield.
Mark the seating positions of the pins and remove the pins from the windshield.
Remove the windshield molding from the windshield.

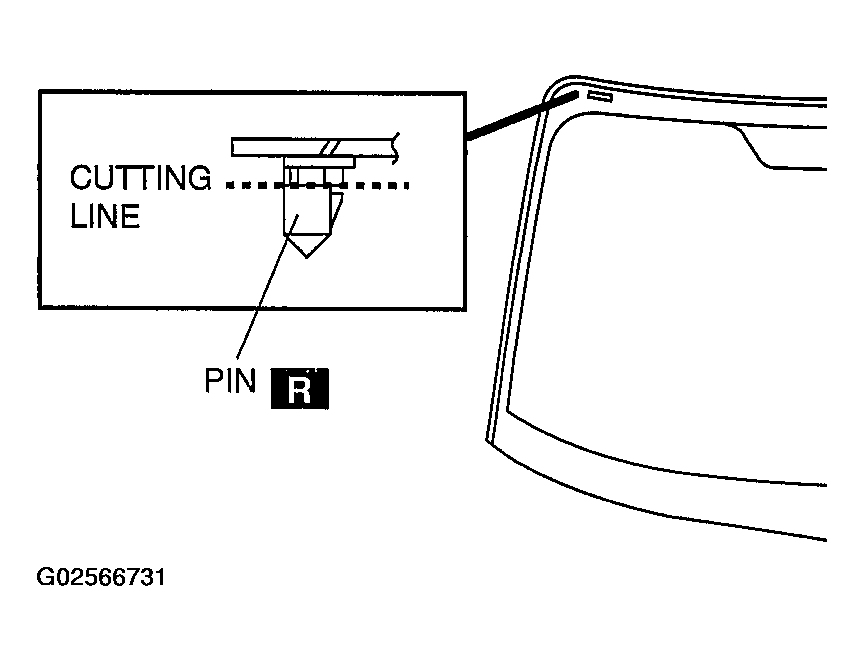

Fig 4: Cutting Pin Out
Courtesy of MAZDA MOTORS CORP.
