Fuel Line Safety Procedure

  1. Remove the fuel-filler cap to release the pressure inside the fuel tank.
  2. Remove the fuel pump relay.

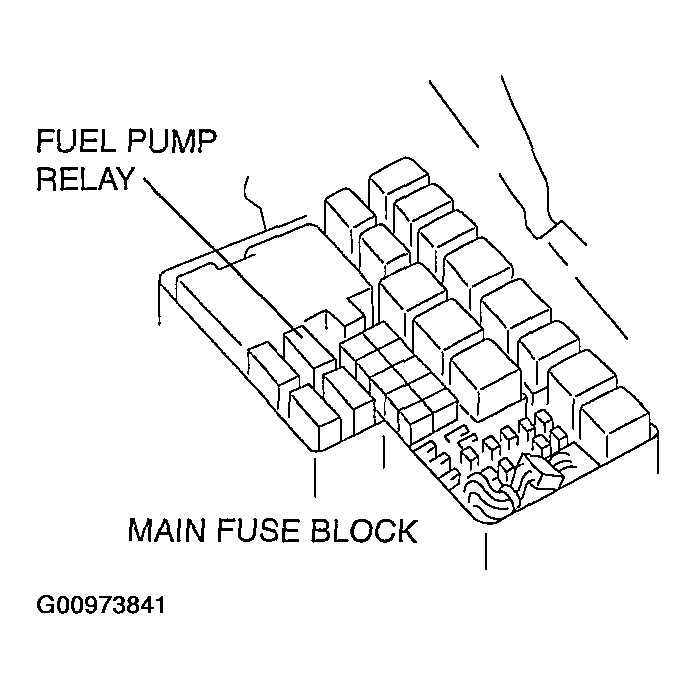

    Fig 1: Locating Fuel Pump Relay
    G00973841Courtesy of MAZDA MOTORS CORP.
  3. Start the engine.
  4. After the engine stalls, crank the engine several times.
  5. Turn the ignition switch to the LOCK position.
  6. Install the fuel pump relay.
