Fuel Injector Installation Note
- Verify that the O-ring is not damaged.
- If there is any damage, replace the O-ring.
- Apply a small amount of clean oil to the injector groove and the O-ring.
- Temporarily attach a new clip to the injector groove.
NOTE:
- When the clip is attached correctly, the central area of the injector and the clip finger positions are aligned.
- Hold the injector firmly and push the clip into the injector until the clip stops sliding.
- Verify that the injector connector position is correct.

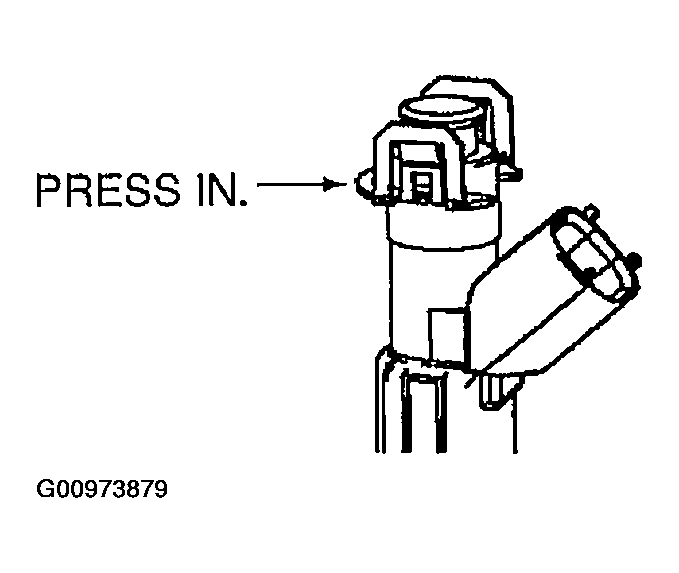

- Press the injector into the injector cup. Continue pressing until the clip contacts the lower surface of the injector cup.
Courtesy of MAZDA MOTORS CORP.
- Verify that the injector and clip are correctly installed with the clip locked onto the injector cup notch.
