Continuity Inspection

Disconnect the negative battery cable.
Disconnect the fuel pump unit connector.
Inspect for continuity between the following fuel pump unit terminals.
Except for California emission regulation applicable model
- A and E
For California emission regulation applicable model
- A and B
- If there is continuity, perform the "Circuit Open/Short Inspection".
- If there is no continuity, replace the fuel pump.

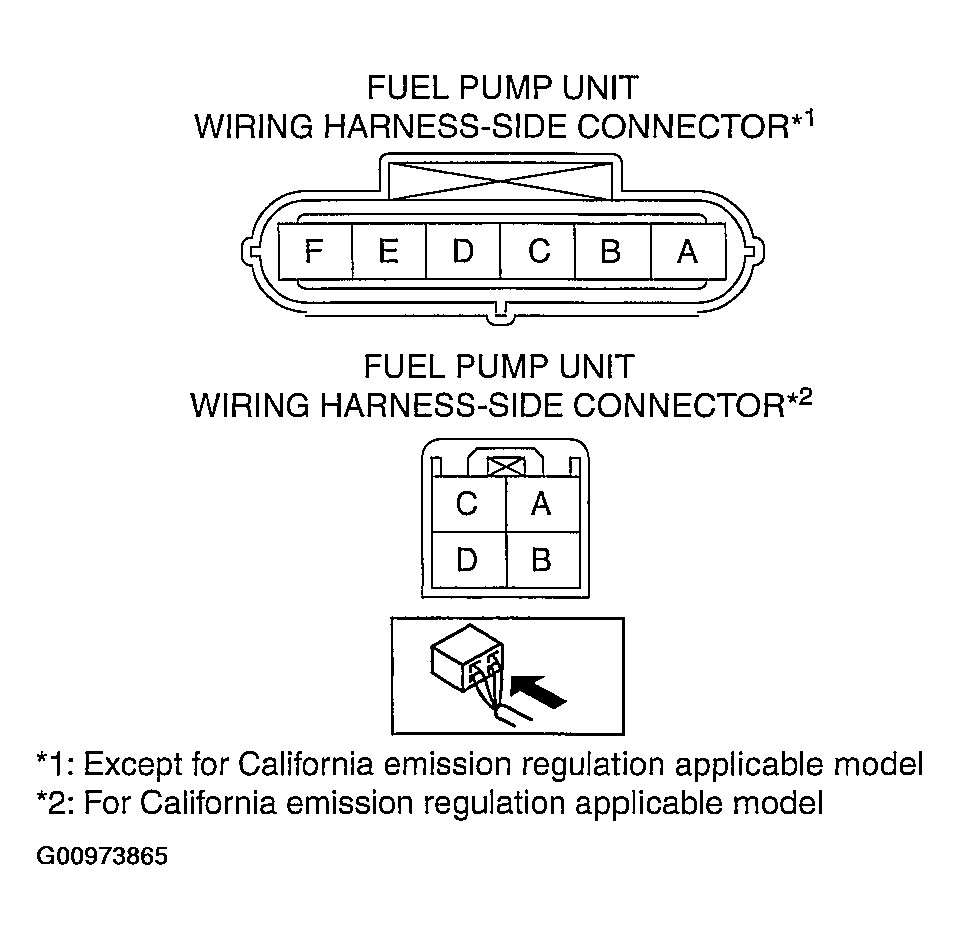

  Fig 1: Identifying Fuel Pump Unit Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
