California Emission Regulation Applicable Model

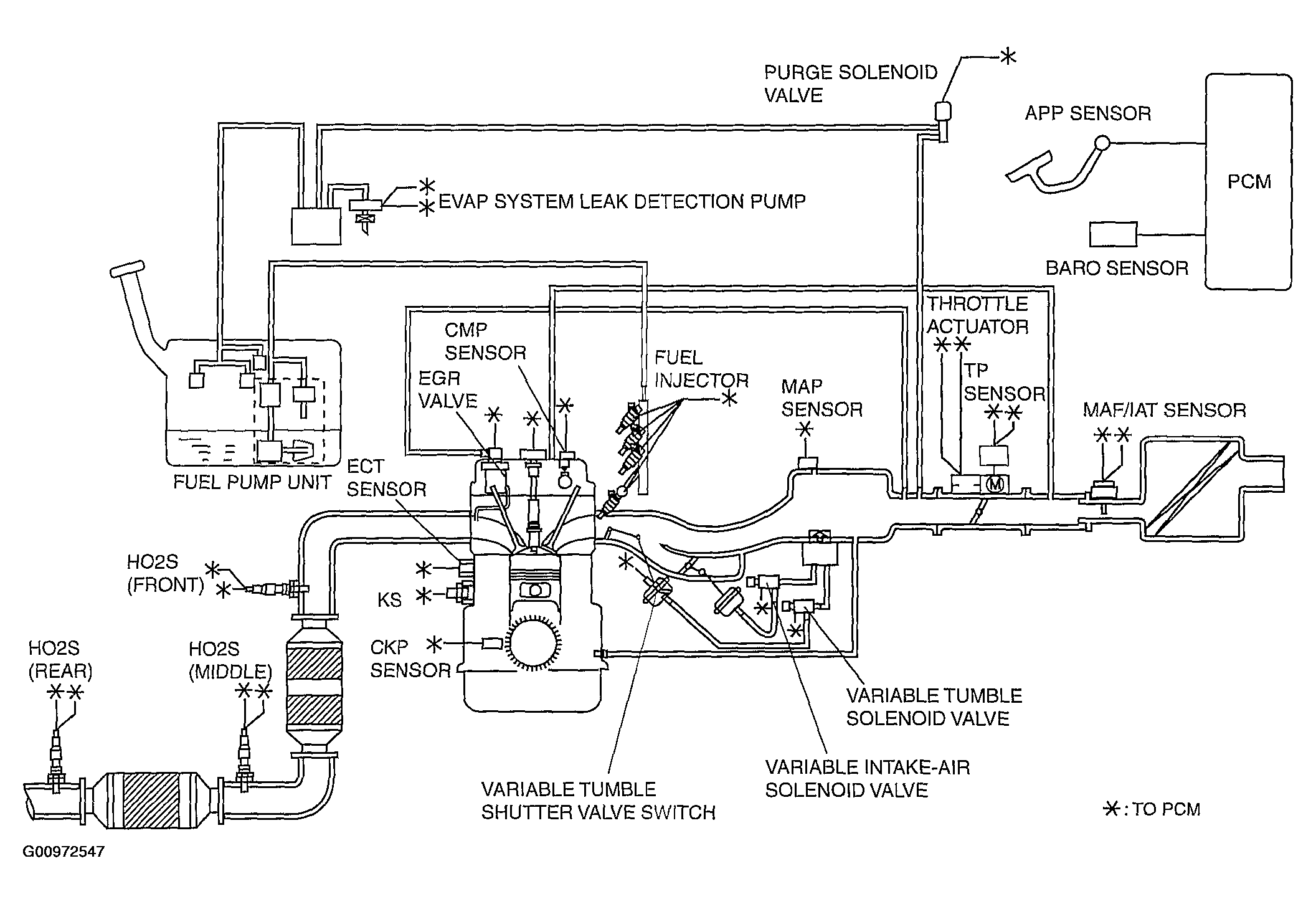

Fig 1: Control System Diagram-California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
