Crankshaft Position (CKP) Sensor Removal/Installation: Removal

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the plug hole cover.
4. Perform the following procedure for easier access.
   1. Remove the front tire (RH).
   2. Remove the splash shield.
5. Disconnect the CKP sensor connector.
6. Remove the installation bolt and remove the CKP sensor.

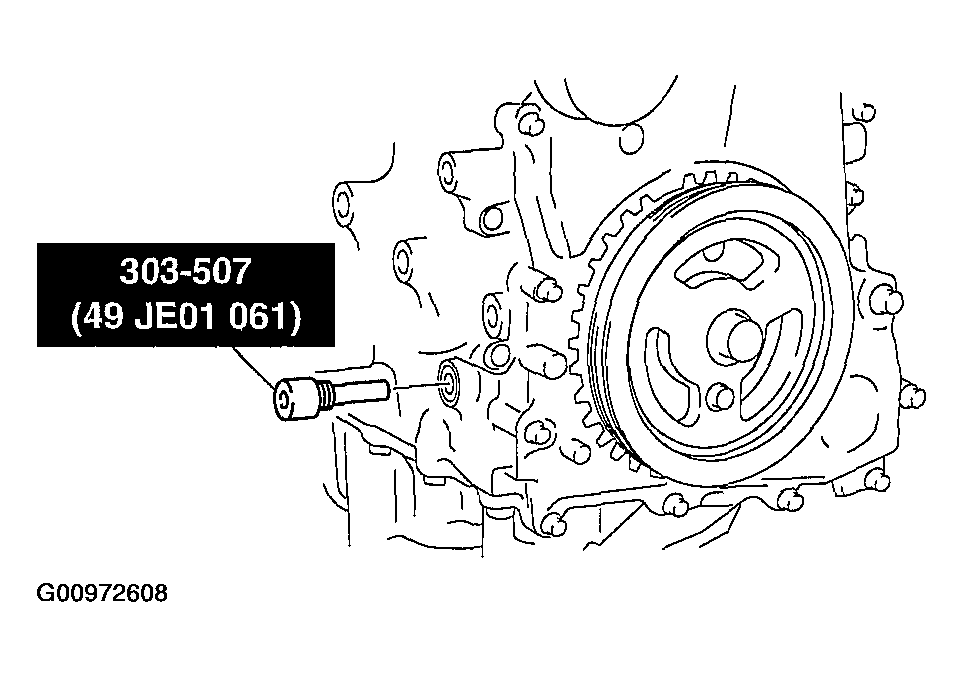

Fig 1: Removing/Installing Crankshaft Position Sensor

Courtesy of MAZDA MOTORS CORP.
