Engine Coolant Temperature (ECT) Sensor Inspection: Standard

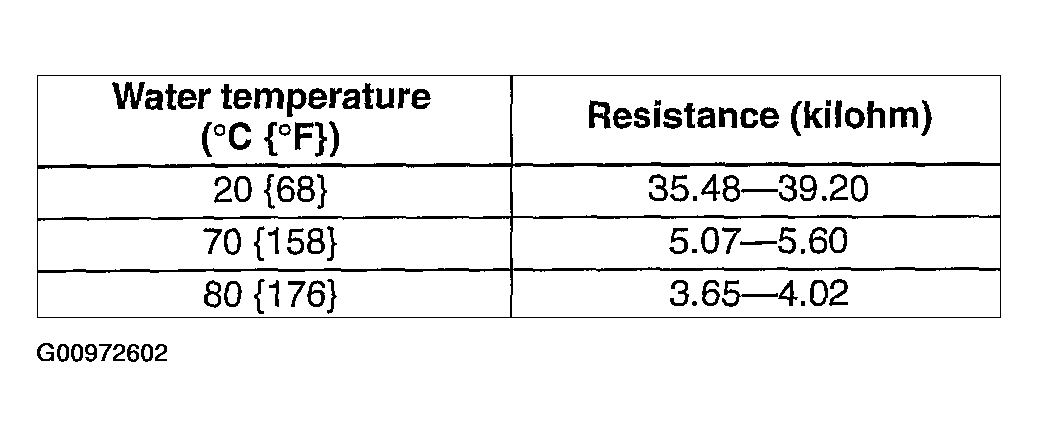

Fig 1: Engine Coolant Temperature Sensor Resistance Specification Table
G00972602Courtesy of MAZDA MOTORS CORP.
