Wiring Harness Bracket Installation Note

NOTE:
  • There might be no pin. If there is no pin, lock the wiring harness bracket against rotation and tighten the nut.

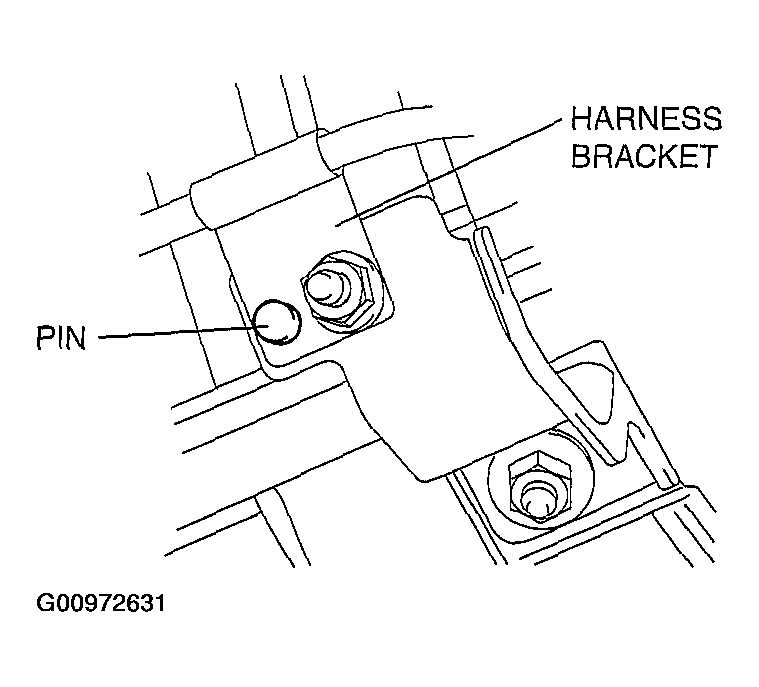

    Fig 1: Locating Wiring Harness Bracket & Pin
    G00972631Courtesy of MAZDA MOTORS CORP.
