Intake Air Temperature (IAT) Sensor Inspection: Standard

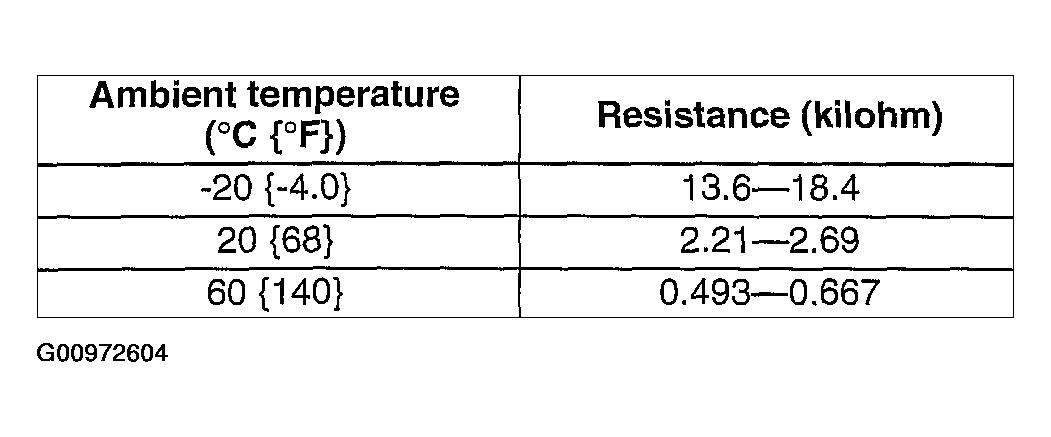

Fig 1: Intake Air Temperature Resistance Specification Table
G00972604Courtesy of MAZDA MOTORS CORP.

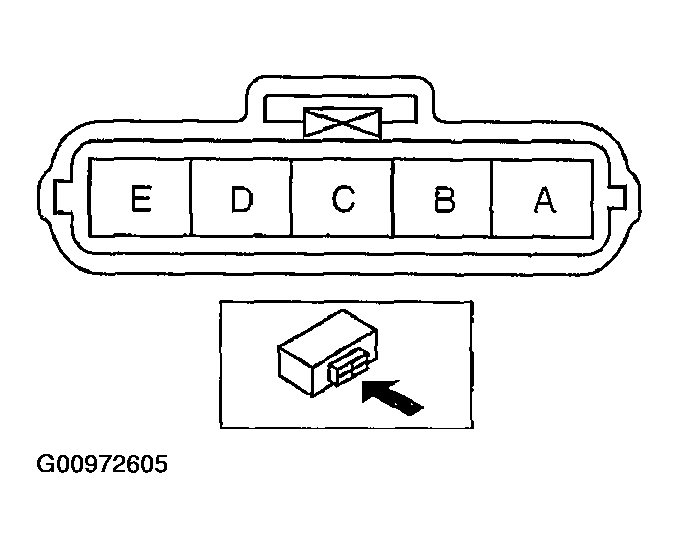

Fig 2: Identifying Intake Air Temperature Terminals
G00972605Courtesy of MAZDA MOTORS CORP.
