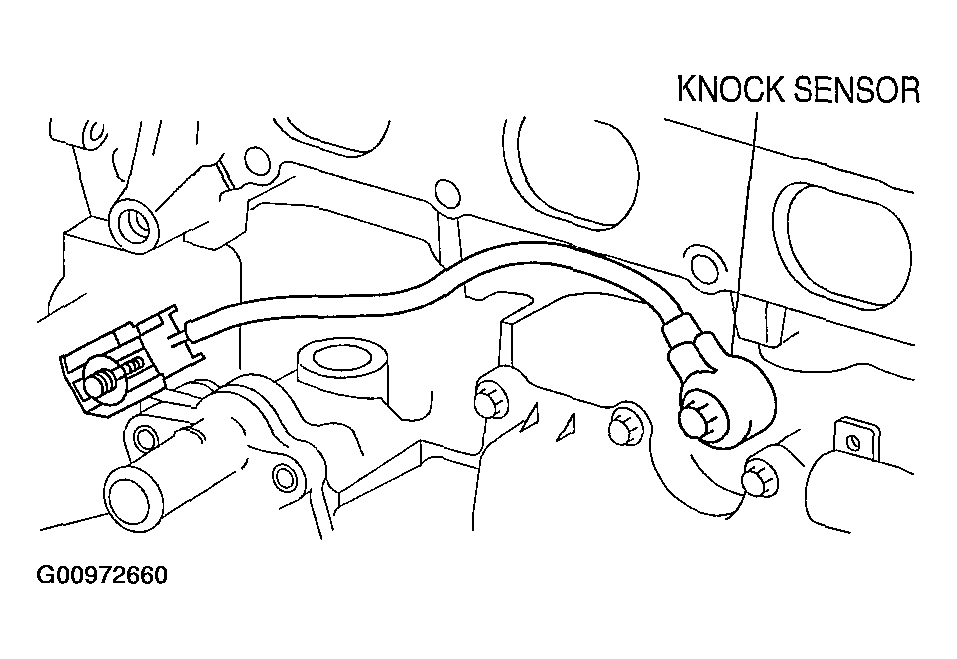

Knock Sensor (KS) Removal/Installation
- Remove the following part for easier access.
- Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF] , INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)
- Disconnect the KS connector.
- Remove the KS installation bolt, then remove the KS.
- Install in the reverse order of removal.
- Tightening torque 16-24 N.m {1.7-2.4 kgf.m, 12-17 ft.lbf}
