Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Disconnect the MAF sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

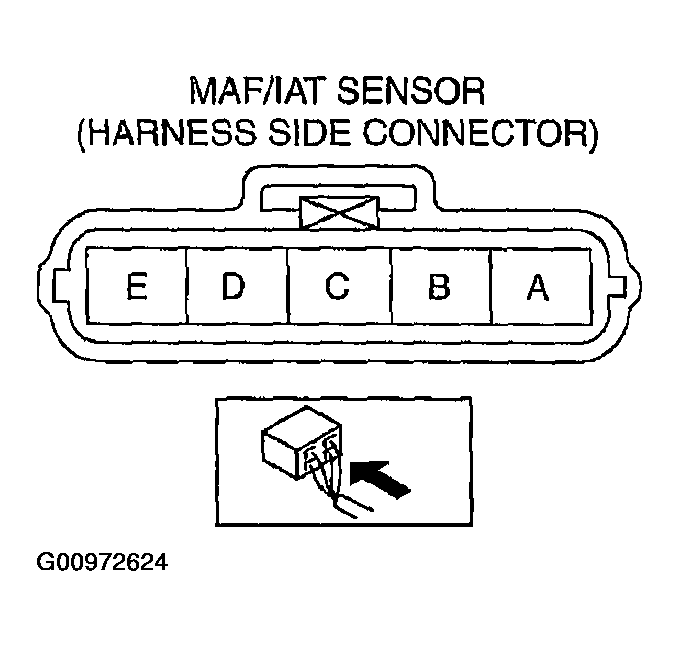

    Fig 1: Identifying MAF/IAT Sensor Connector Terminals
    G00972624Courtesy of MAZDA MOTORS CORP.
