Continuity Inspection

  1. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity between neutral switch terminals A and B is as indicated in the table.
    • If it can be verified, perform the Circuit Open/Short Inspection .
    • If it cannot be verified, replace the neutral switch.

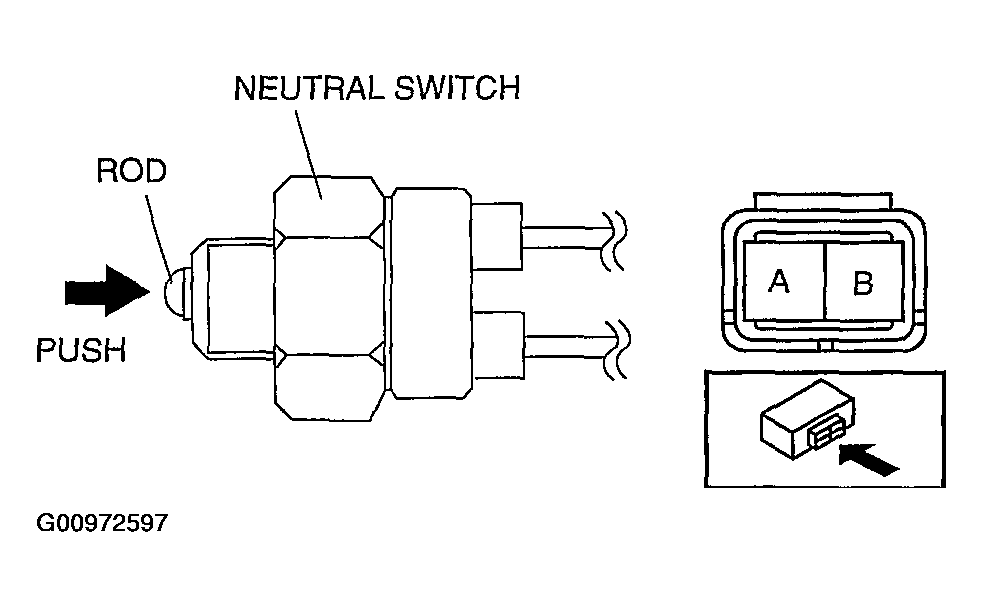

      Fig 1: Testing Neutral Switch
      G00972597Courtesy of MAZDA MOTORS CORP.

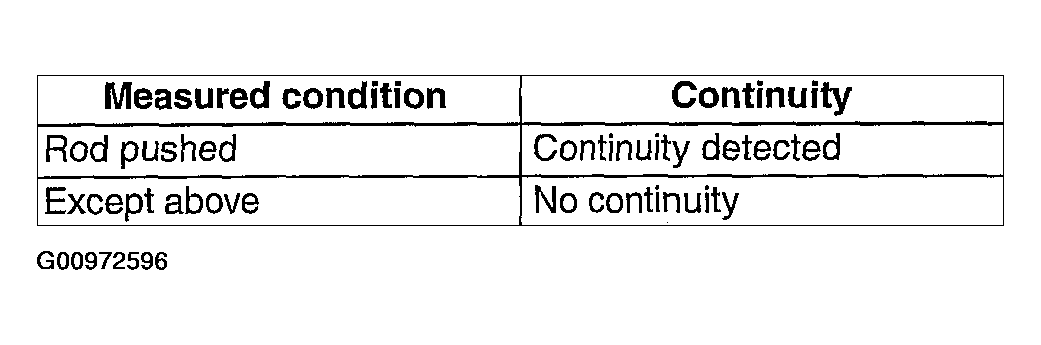

      Fig 2: Neutral Switch Continuity Table
      G00972596Courtesy of MAZDA MOTORS CORP.
