APP signal

Accelerator pedal is released

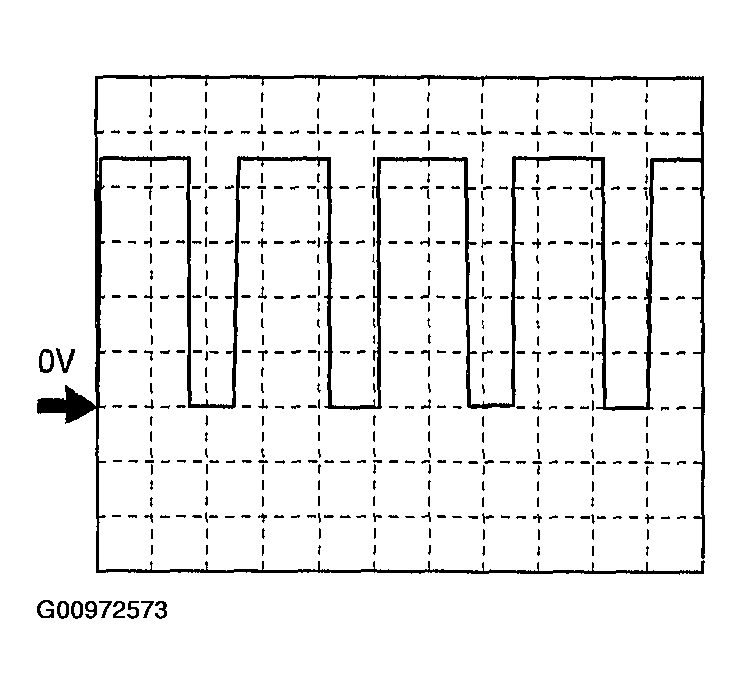

Fig 1: Inspection Graph Of APP Signal Using Oscilloscope

Courtesy of MAZDA MOTORS CORP.

Accelerator pedal is depressed

PCM terminals

• 1AL(+)-2AA(-)

Oscilloscope setting

• 2.5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Ignition switch is turned to the ON position. (engine off)

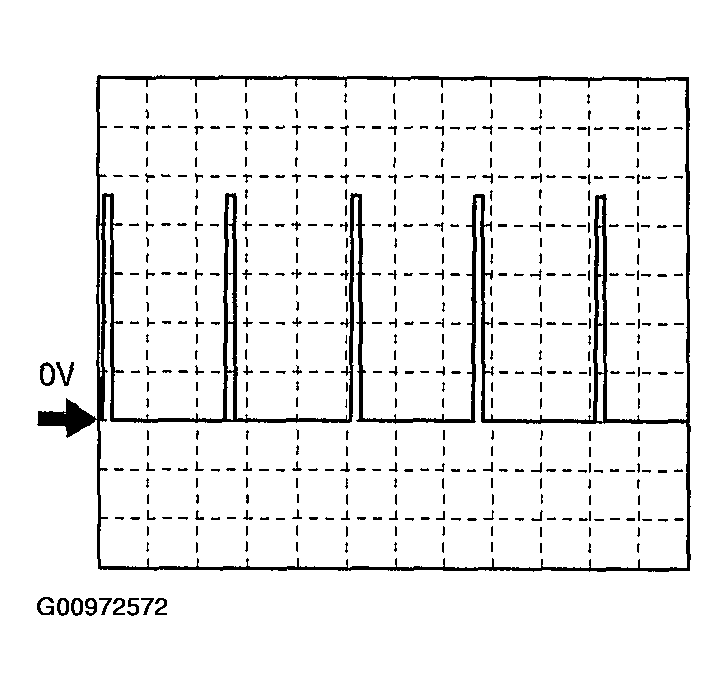

  Fig 2: Inspection Graph Of Accelerator Pedal Is Depressed Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
