Pcm Removal/Installation
- When replacing the PCM, perform the following:
- PCM configuration (See PCM CONFIGURATION .)

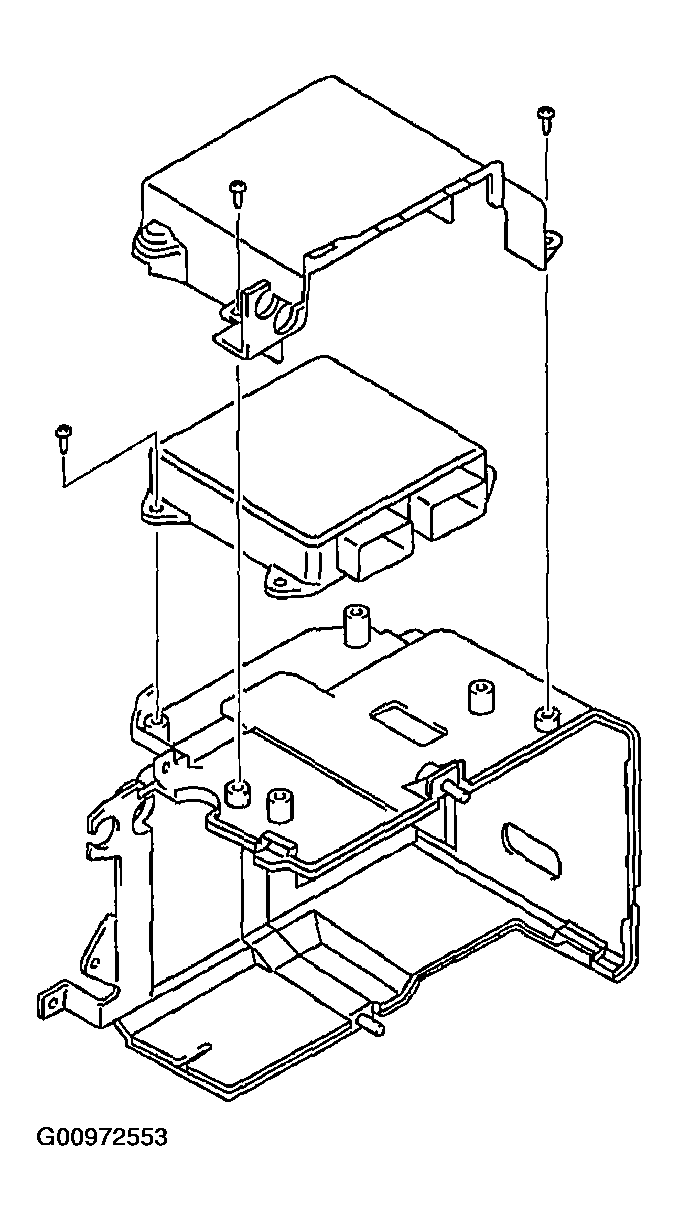

- Remove the battery cover, battery duct, battery and battery tray with PCM.
- Disconnect the PCM connector.
- Remove the PCM from the battery tray.
- When replacing the PCM on the vehicles, perform the following:
- PCM parameter reset (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING .)
- Install in the reverse order of removal.
