Short circuit

If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- HO2S terminal A and body GND
- HO2S terminal A and power supply
- HO2S terminal B and power supply

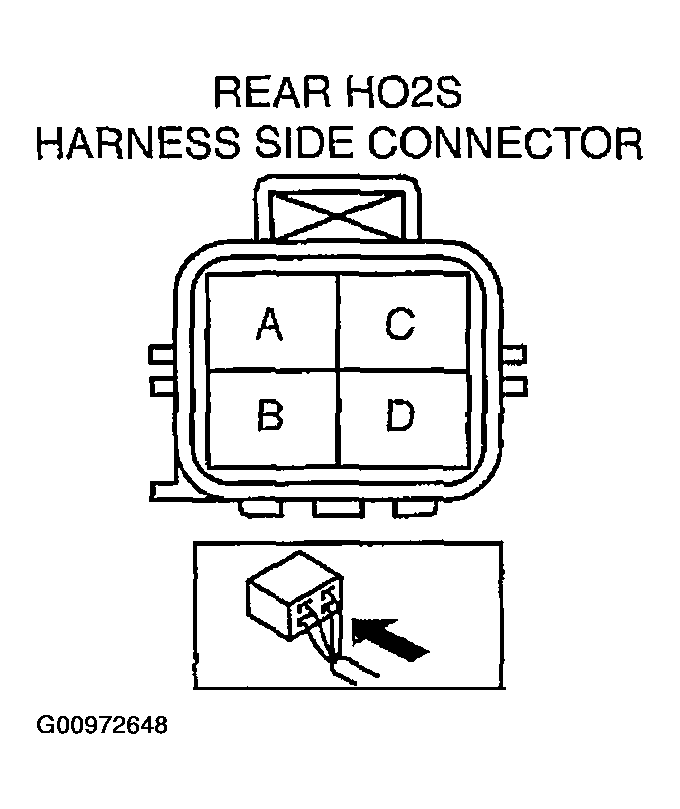

Fig 1: Identifying Rear HO2S Connector Terminals
Courtesy of MAZDA MOTORS CORP.
