After Repair Procedure

  1. Connect the WDS or equivalent to the DLC-2.
  2. Cycle the ignition switch off, then to the ON position (Engine off).
  3. Record the DTC if retrieved.
  4. Clear all diagnostic data using the WDS or equivalent.

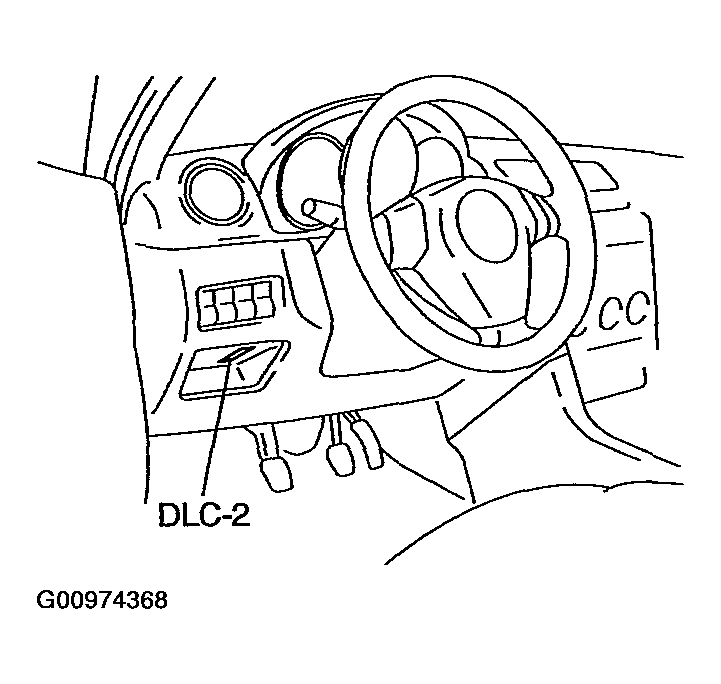

    Fig 1: Identifying DLC-2 Connector Location
    G00974368Courtesy of MAZDA MOTORS CORP.
