DTC P0011: CMP Timing Over-Advanced: Notes

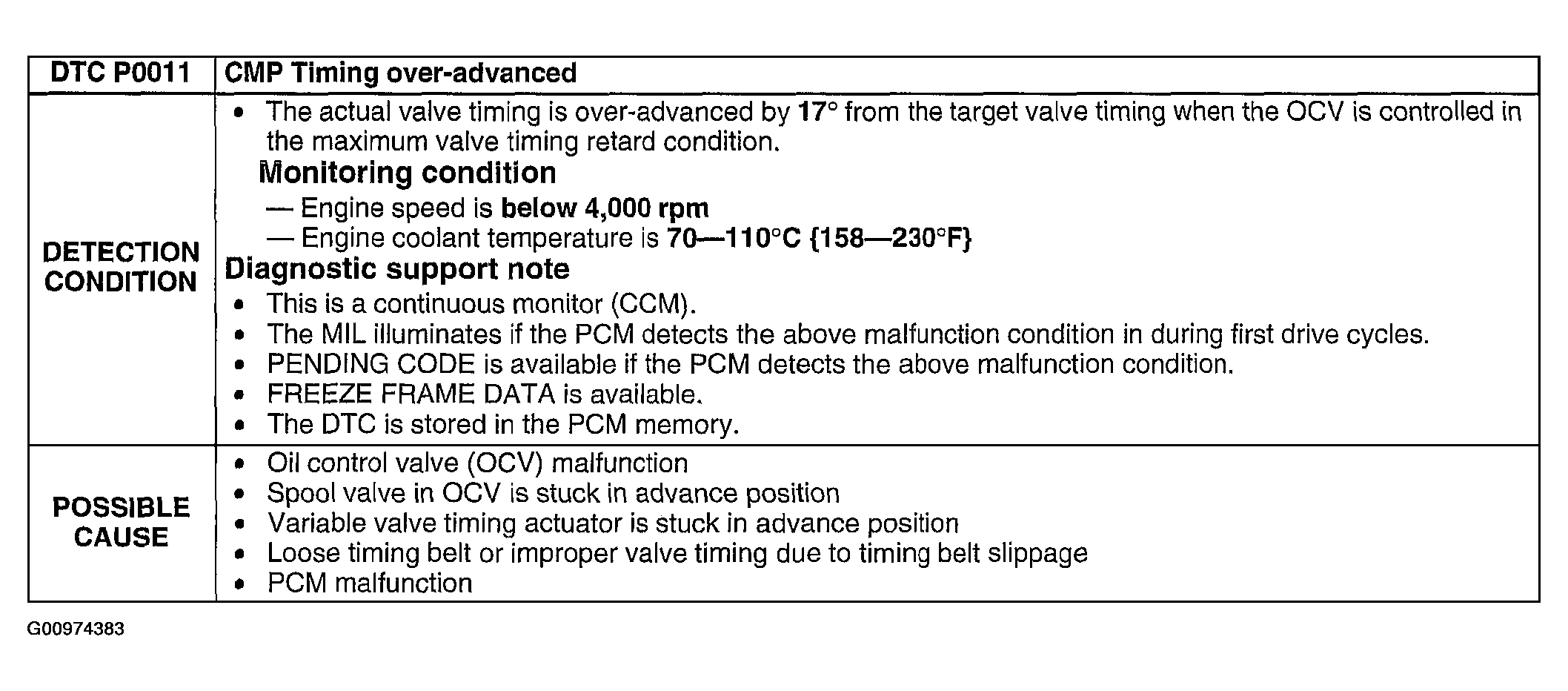

Fig 1: DTC P0011: Detection Condition & Possible Causes Chart
G00974383Courtesy of MAZDA MOTORS CORP.
