DTC P0012: CMP Timing Over-Retarded: Notes

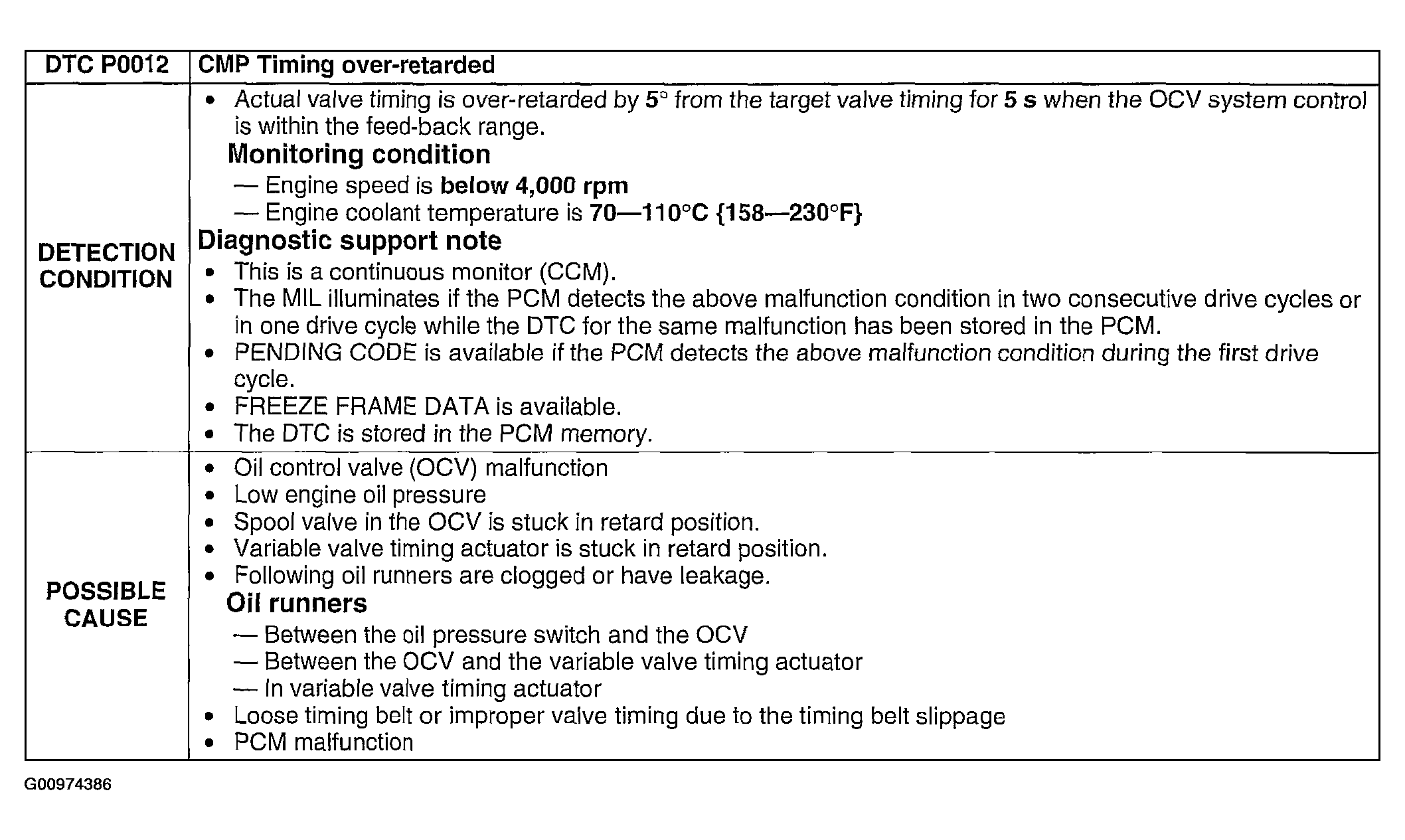

Fig 1: DTC P0012: Detection Condition & Possible Causes Chart
G00974386Courtesy of MAZDA MOTORS CORP.
