Diagnostic Procedure

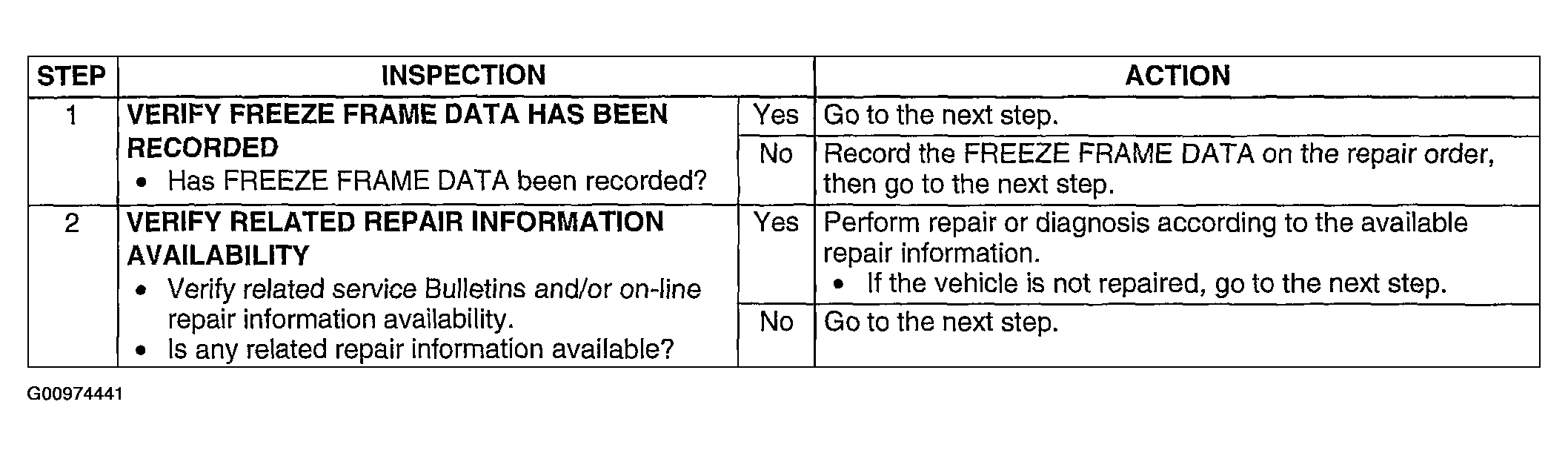

Fig 1: DTC P0108: Diagnostic Procedure Chart (Steps 1 & 2)
G00974441Courtesy of MAZDA MOTORS CORP.

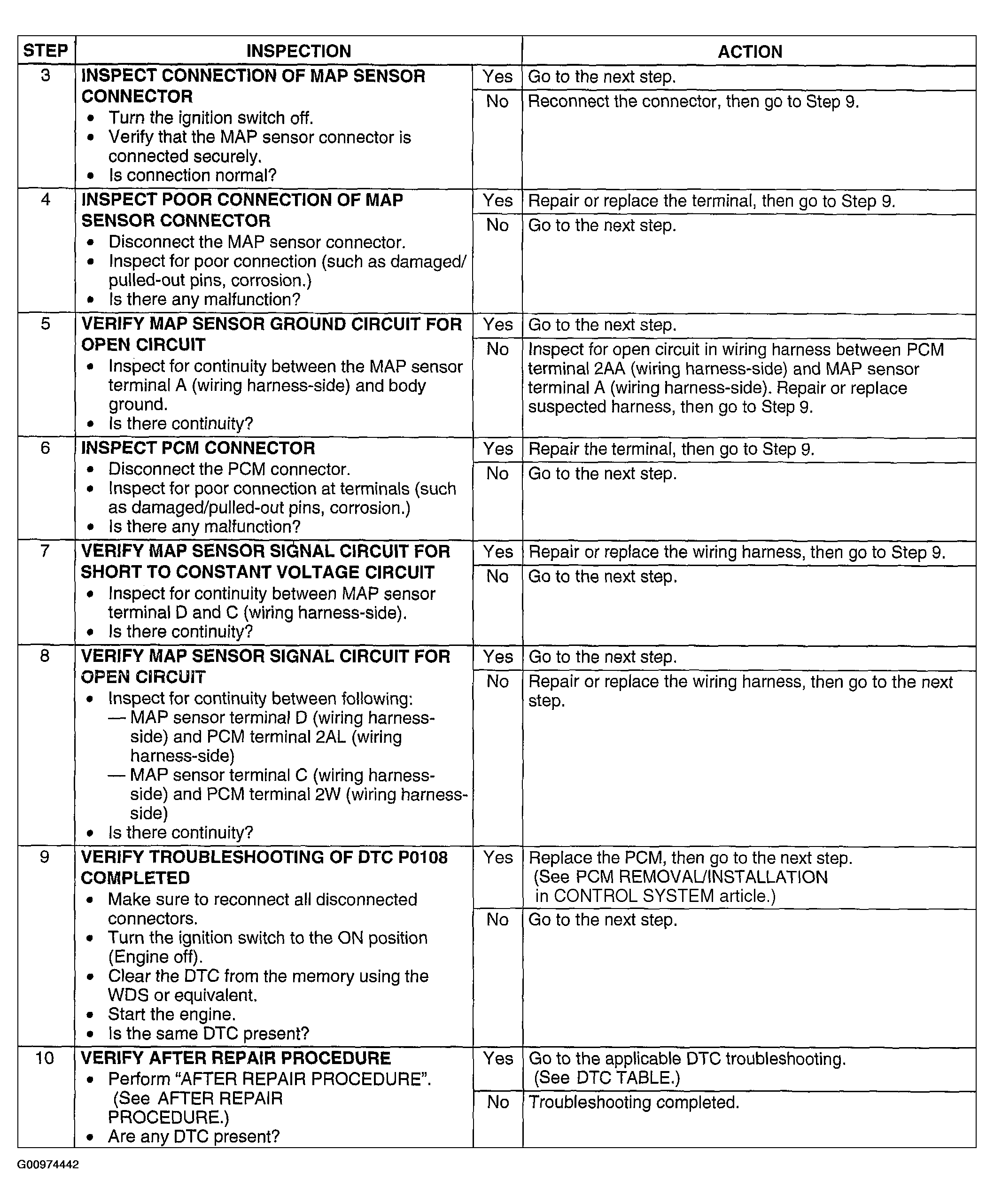

Fig 2: DTC P0108: Diagnostic Procedure Chart (Steps 3-10)
G00974442Courtesy of MAZDA MOTORS CORP.
