DTC P0131: Front Ho2S Circuit Low Input
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0131: Front Ho2S Circuit Low Input: Notes

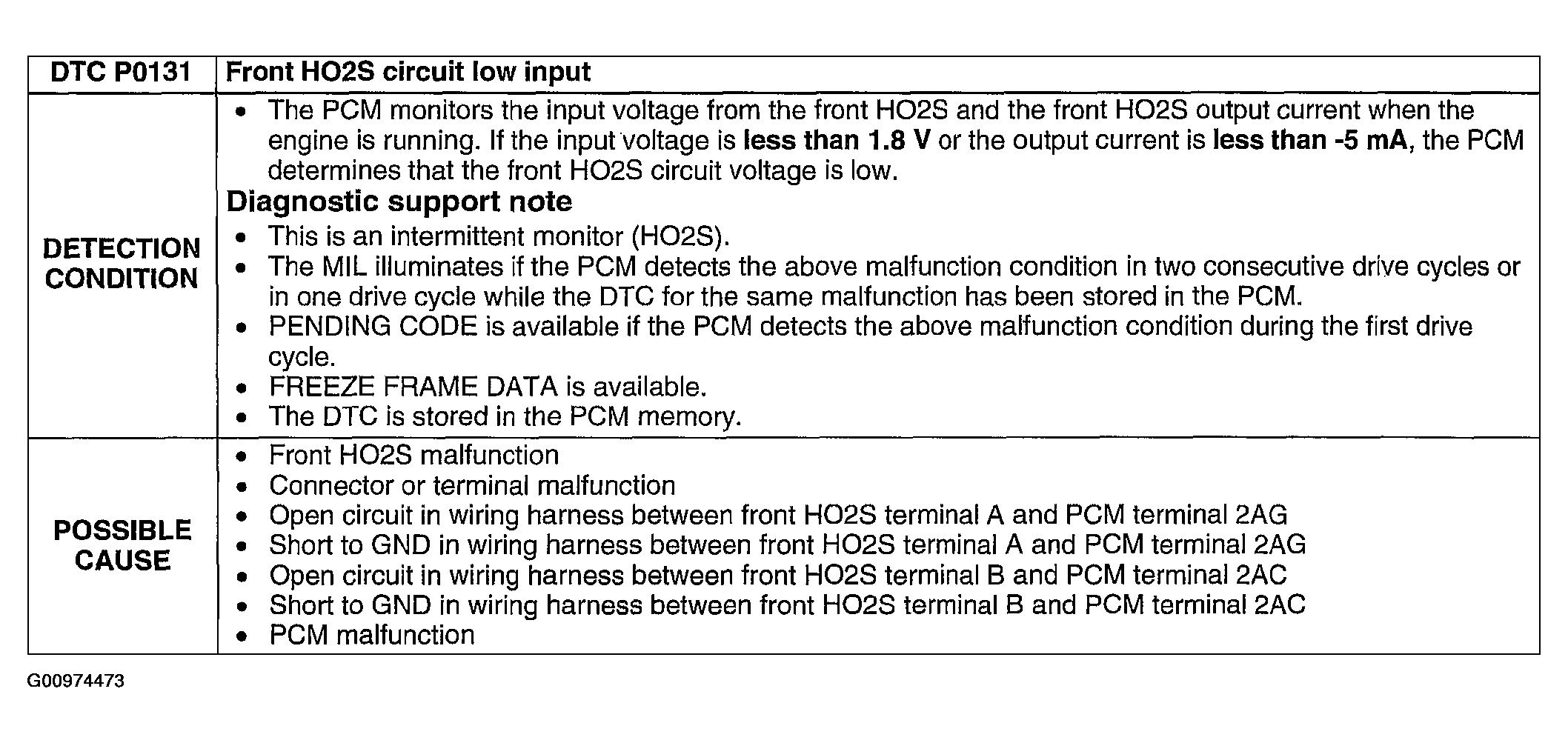

Fig 1: DTC P0131: Detection Condition & Possible Causes Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

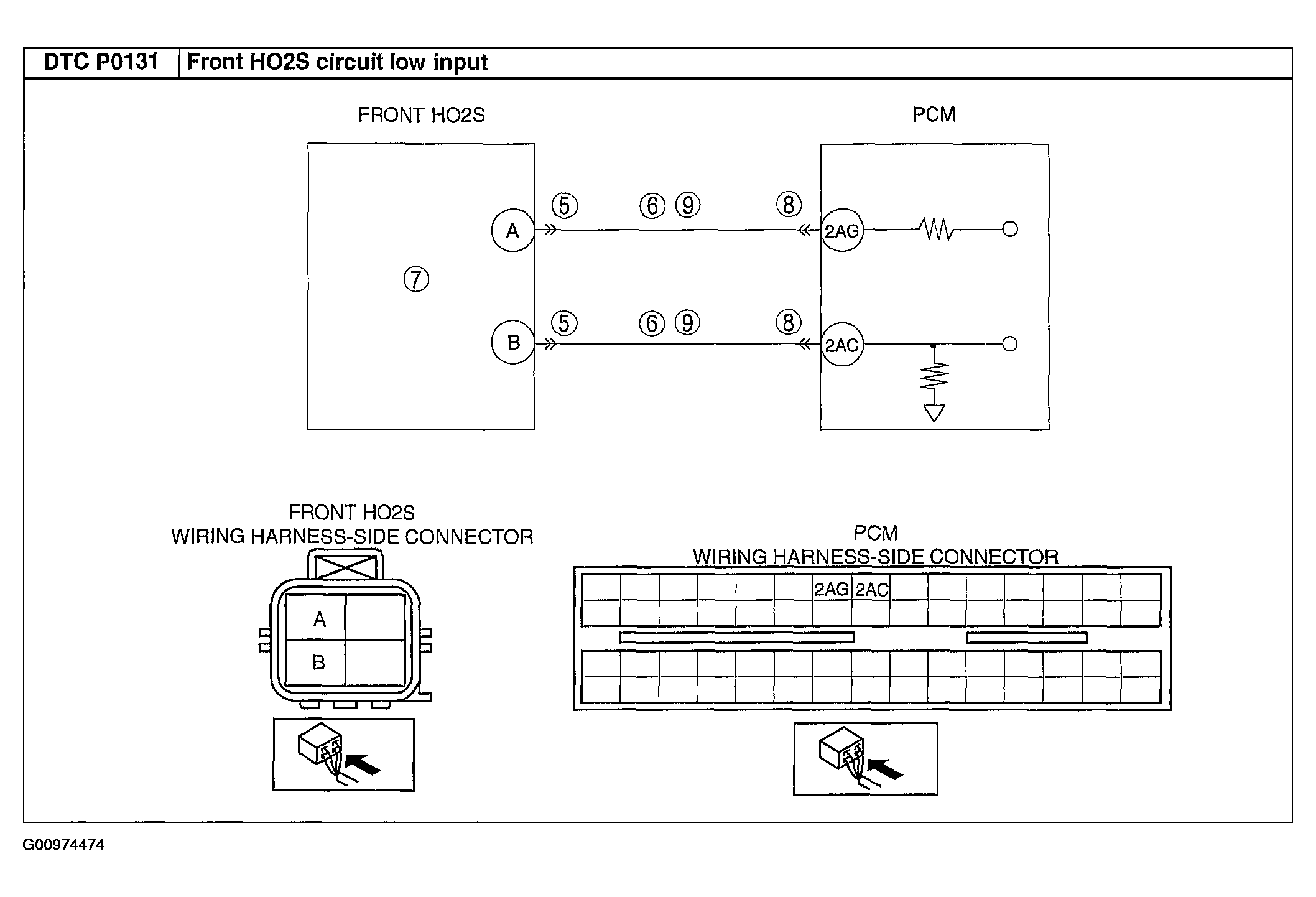

Fig 2: DTC P0131: Detection Condition & Possible Causes Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
