DTC P0340: CMP Sensor Circuit Problem: Notes

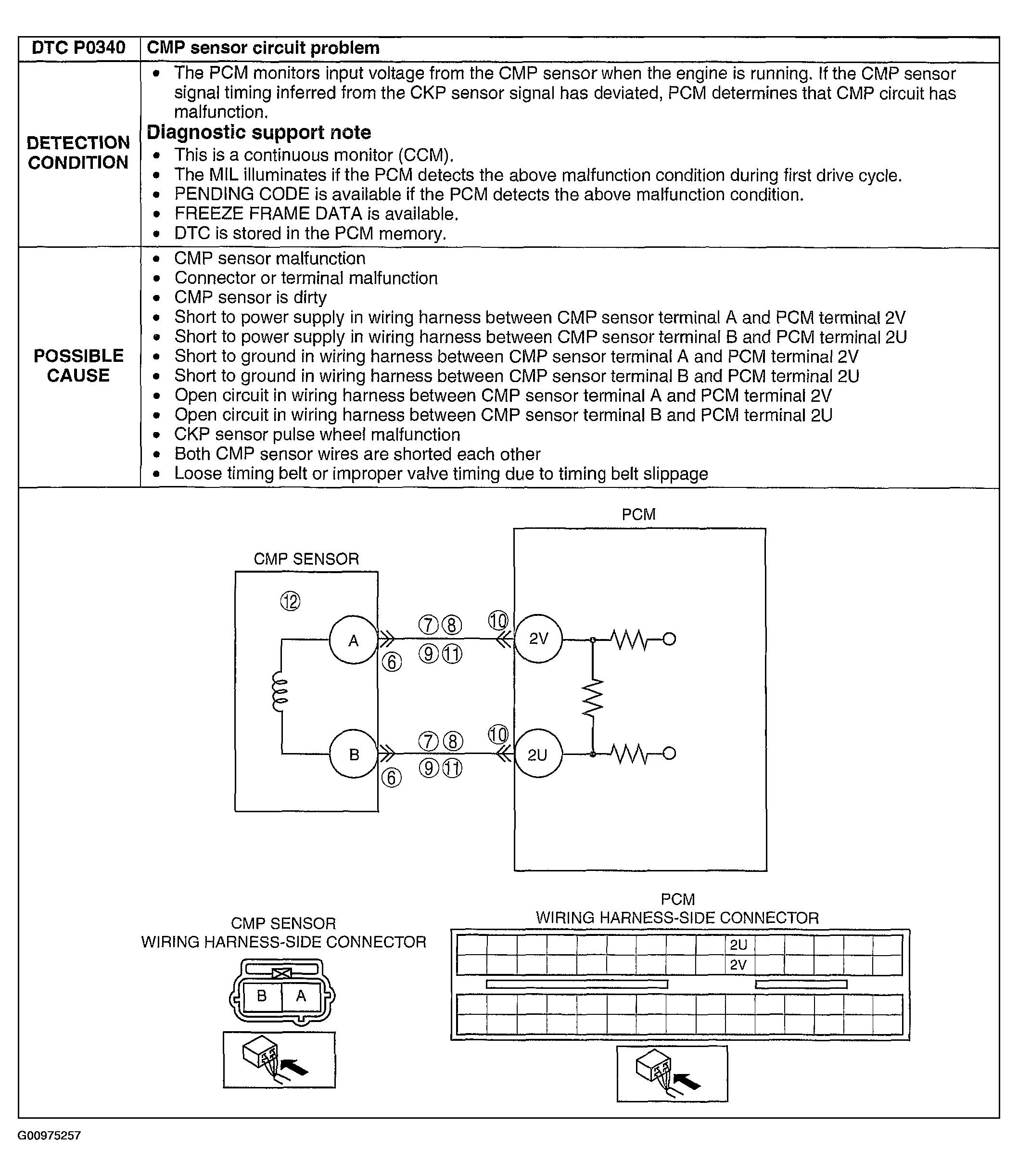

Fig 1: DTC P0340: Detection Condition & Possible Causes Chart
G00975257Courtesy of MAZDA MOTORS CORP.
