DTC P0571: Brake Switch Circuit Problem: Notes

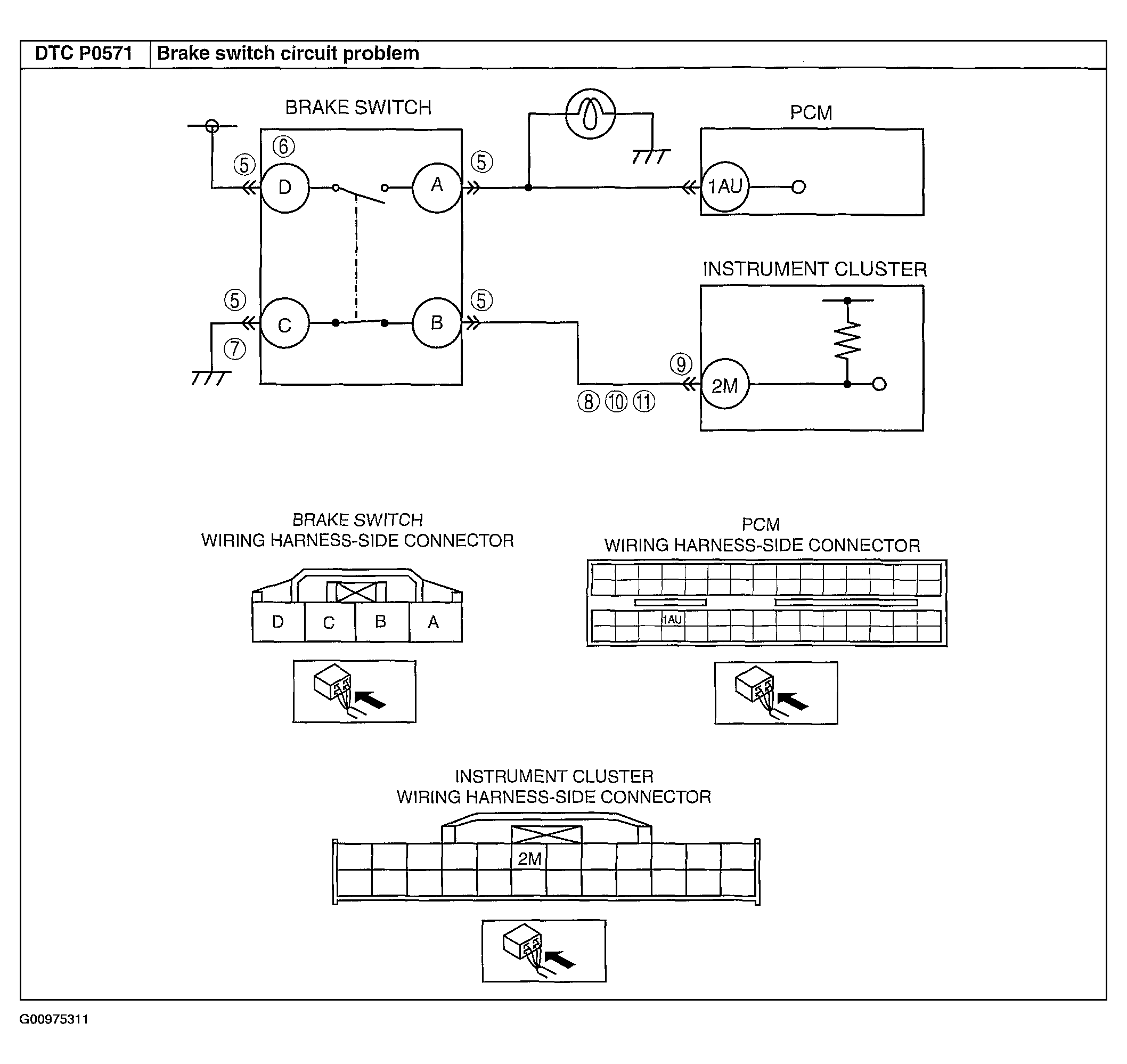

Fig 1: DTC P0571: Detection Condition & Possible Causes Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

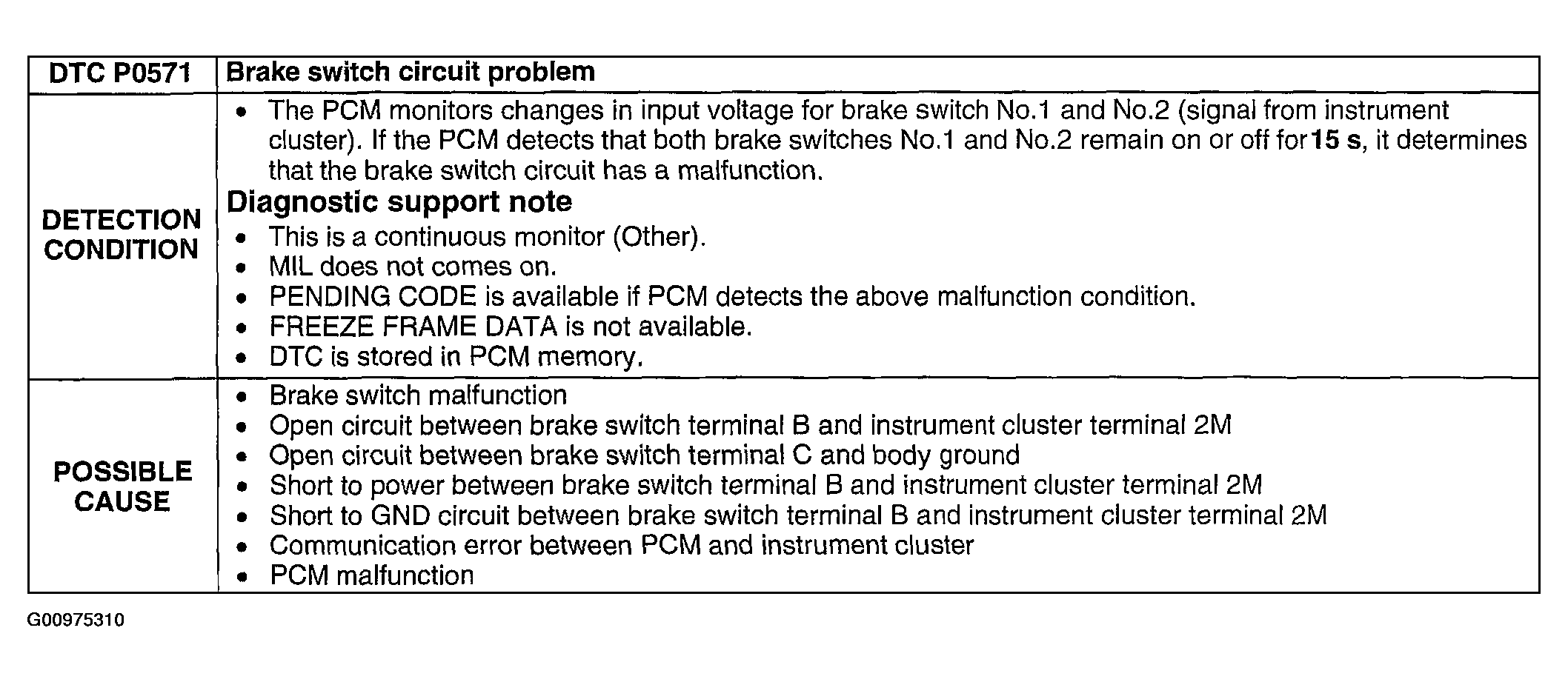

Fig 2: DTC P0571: Detection Condition & Possible Causes Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
