DTC P0703: Brake Switch Input Circuit Problem: Notes

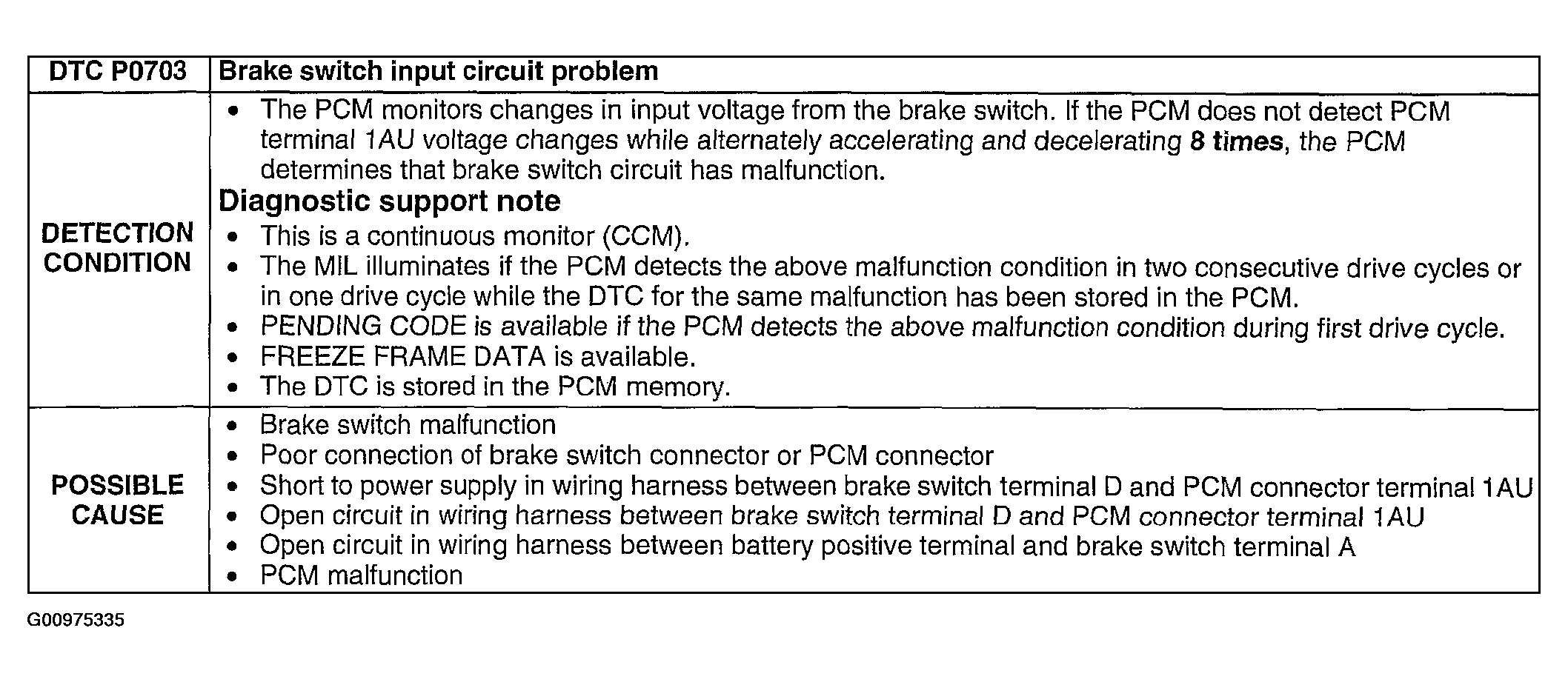

Fig 1: DTC P0703: Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: DTC P0703: Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
