DTC P2109: TP Sensor Minimum Stop/Performance Problem: Notes

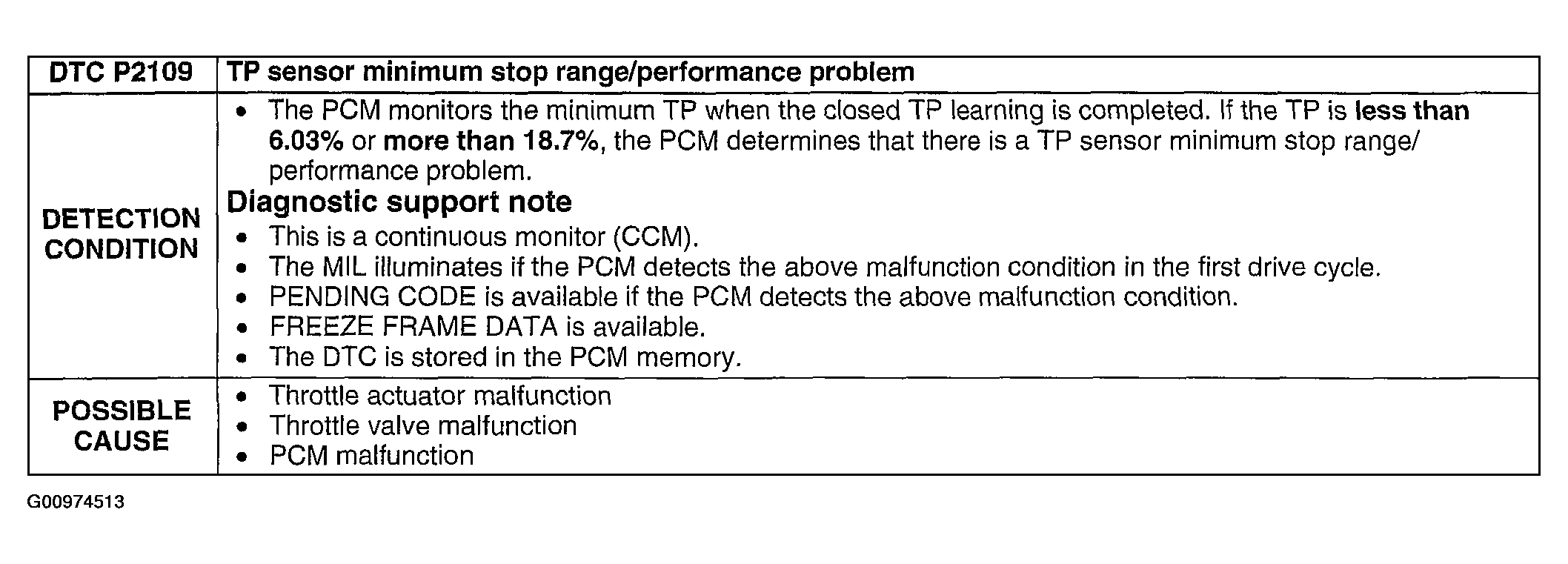

Fig 1: DTC P2109: Detection Condition & Possible Causes Chart
G00974513Courtesy of MAZDA MOTORS CORP.
