Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

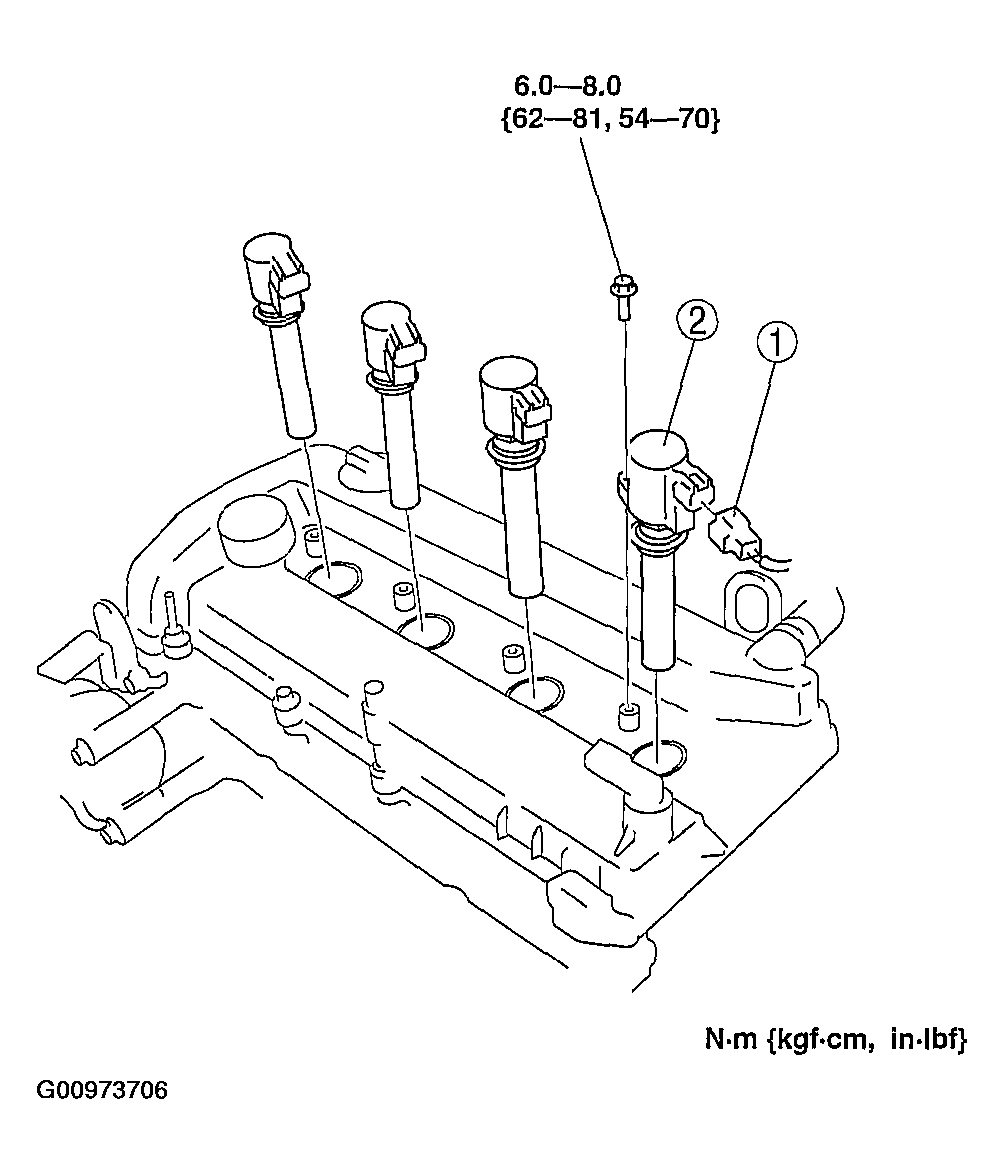

    Fig 1: Ignition Coils With Torque Specifications
    G00973706Courtesy of MAZDA MOTORS CORP.

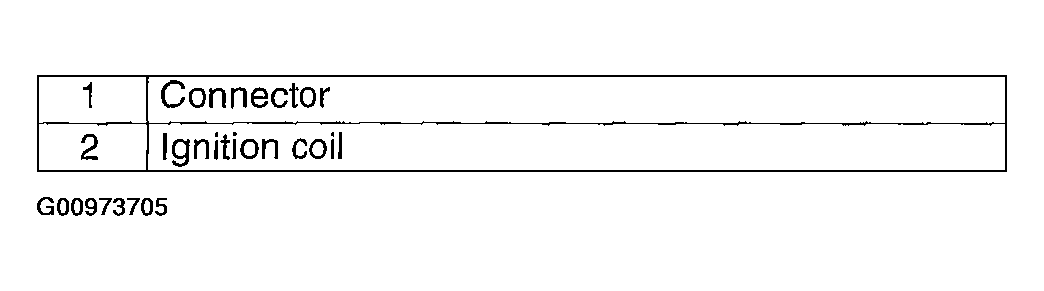

    Fig 2: Ignition Coil Removal Order Table
    G00973705Courtesy of MAZDA MOTORS CORP.
