Front Manual Window Regulator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Regulator handle (See REGULATOR HANDLE REMOVAL .)
    3. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  3. Remove the nuts and the bolts.

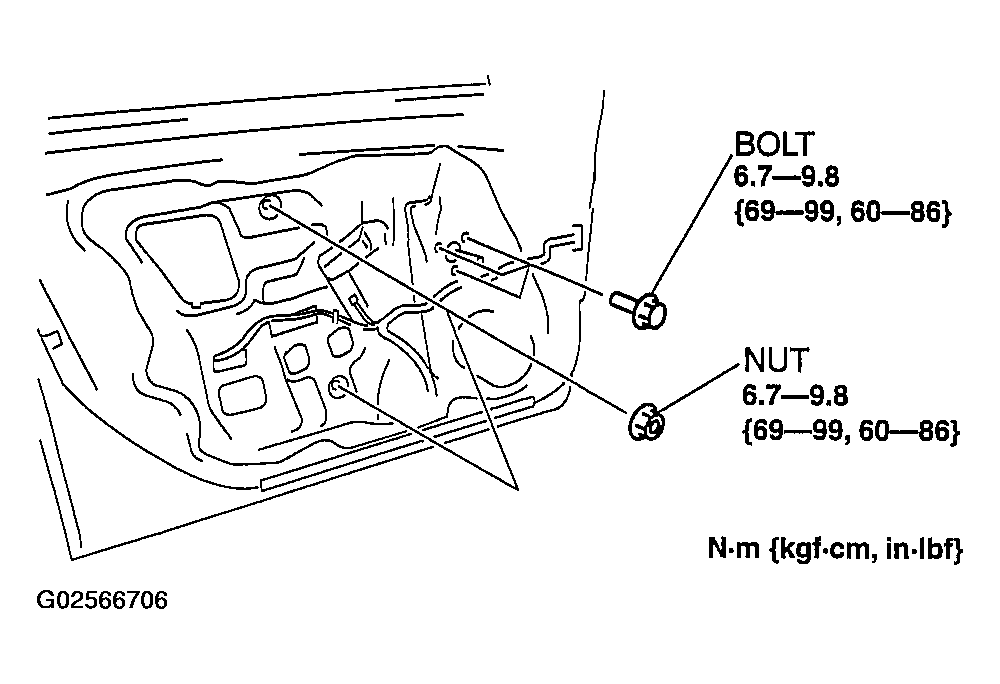

    Fig 1: Front Manual Window Regulator Bolts & Nuts With Torque Specifications
    G02566706Courtesy of MAZDA MOTORS CORP.
  4. Remove the front manual window regulator through the speaker installation hole.
  5. Install in the reverse order of removal.

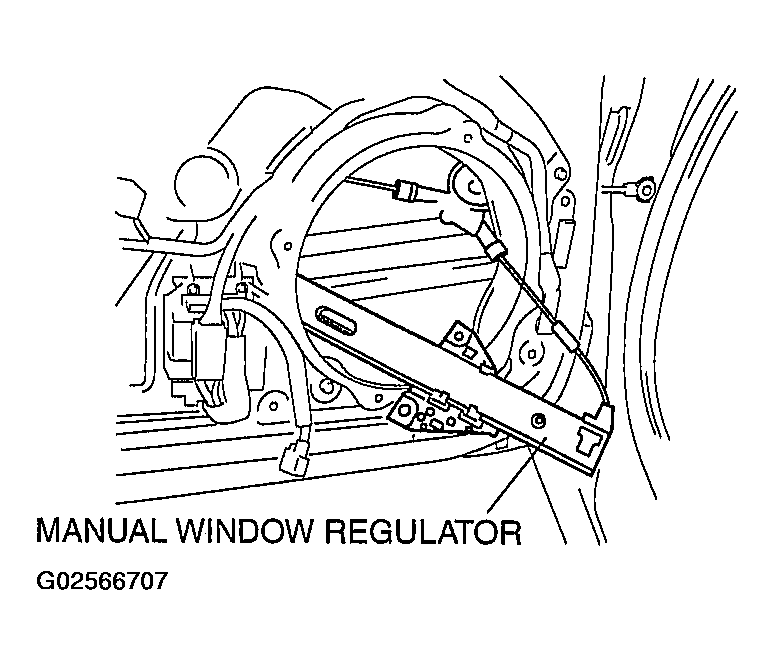

    Fig 2: Front Manual Window Regulator Through Speaker Installation Hole
    G02566707Courtesy of MAZDA MOTORS CORP.
