Power Window SUBSWITCH Inspection

  1. Verify continuity as indicated in the table.
    1. If not as indicated in the table, replace the power window subswitch.

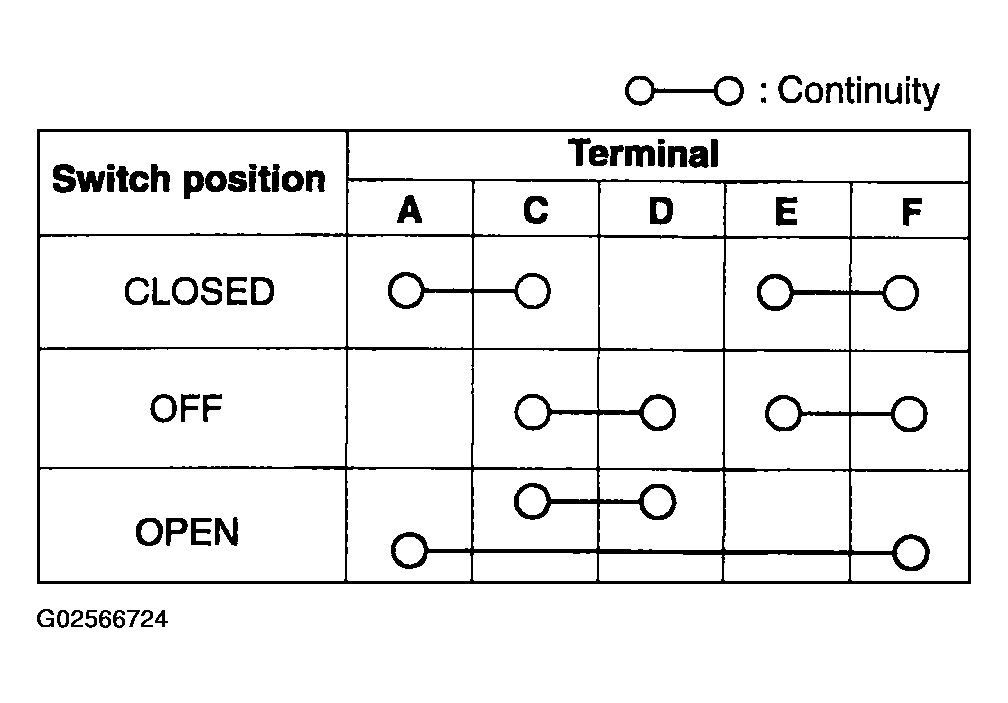

      Fig 1: Power Window Subswitch Continuity Table
      G02566724Courtesy of MAZDA MOTORS CORP.

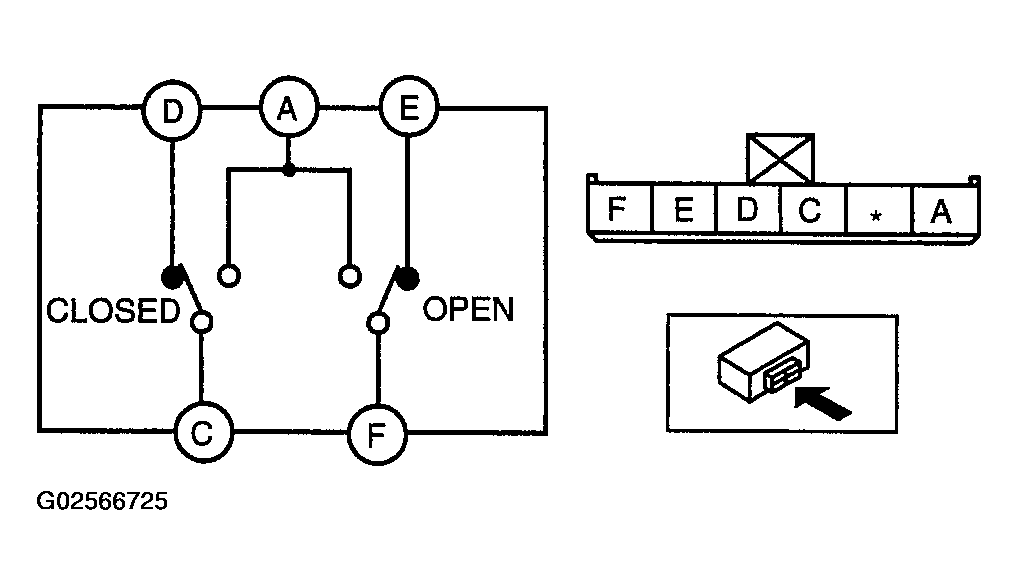

      Fig 2: Identifying Power Window Subswitch Connector Terminal Connection
      G02566725Courtesy of MAZDA MOTORS CORP.
