Rearview Mirror Removal/Installation

Insert a tape-wrapped flathead screwdriver into the notch and pry with the screwdriver in the direction shown by the arrow to remove the covers. (Vehicles with auto wiper system)

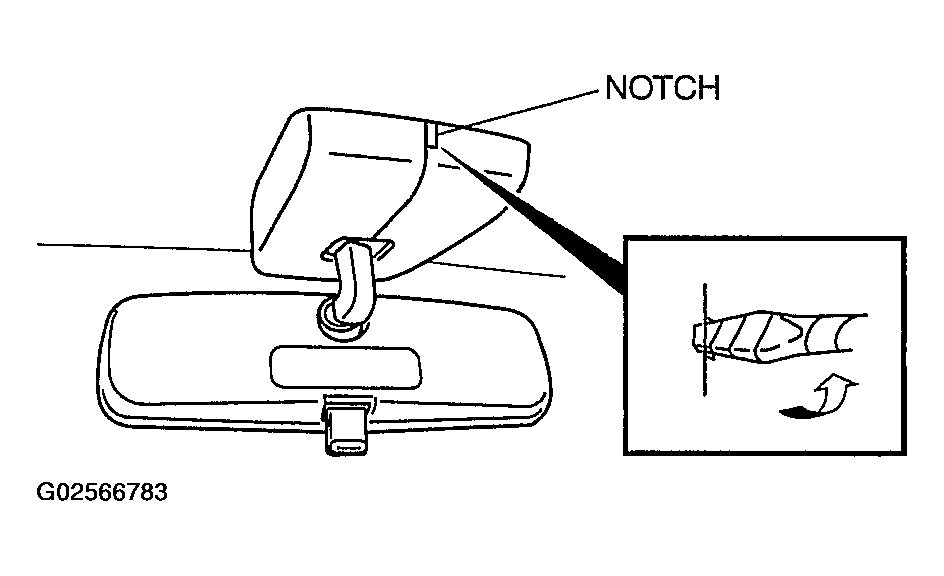

Fig 1: Prying Rearview Mirror Covers
Courtesy of MAZDA MOTORS CORP.
Remove the covers. (Vehicles with auto wiper system)

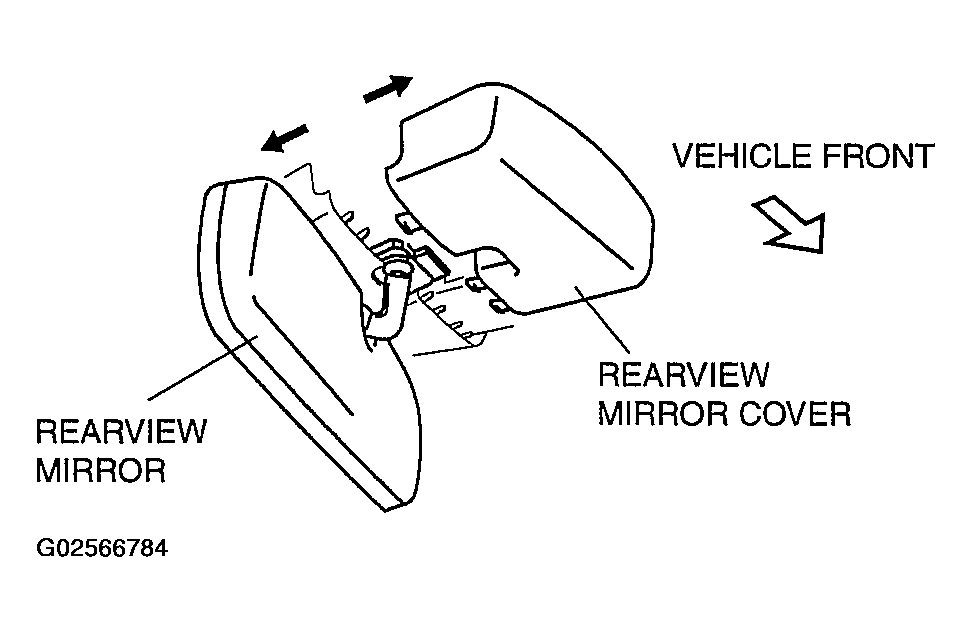

Fig 2: Removing Rearview Mirror Cover
Courtesy of MAZDA MOTORS CORP.
Remove the rain sensor. (Vehicles with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .)
Remove the clip, and then remove the rearview mirror upward.
Install in the reverse order of removal.

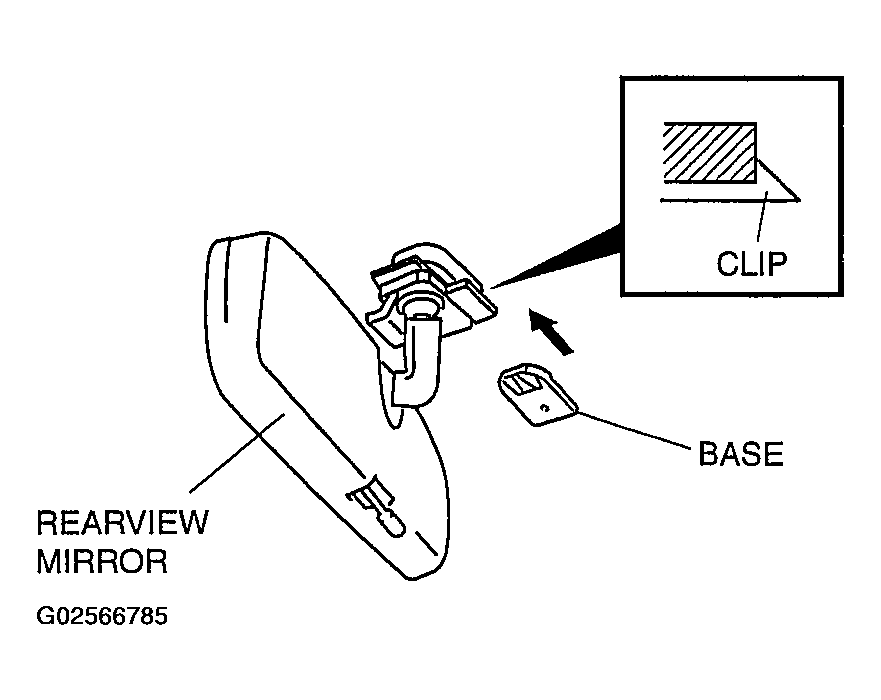

Fig 3: Removing Rearview Mirror Clip
Courtesy of MAZDA MOTORS CORP.
