Fuel Injector Operation Inspection

WARNING:

To prevent serious injury or damage, always perform diagnosis while referring to the warnings and cautions in each procedure when inspecting or repairing the fuel system.

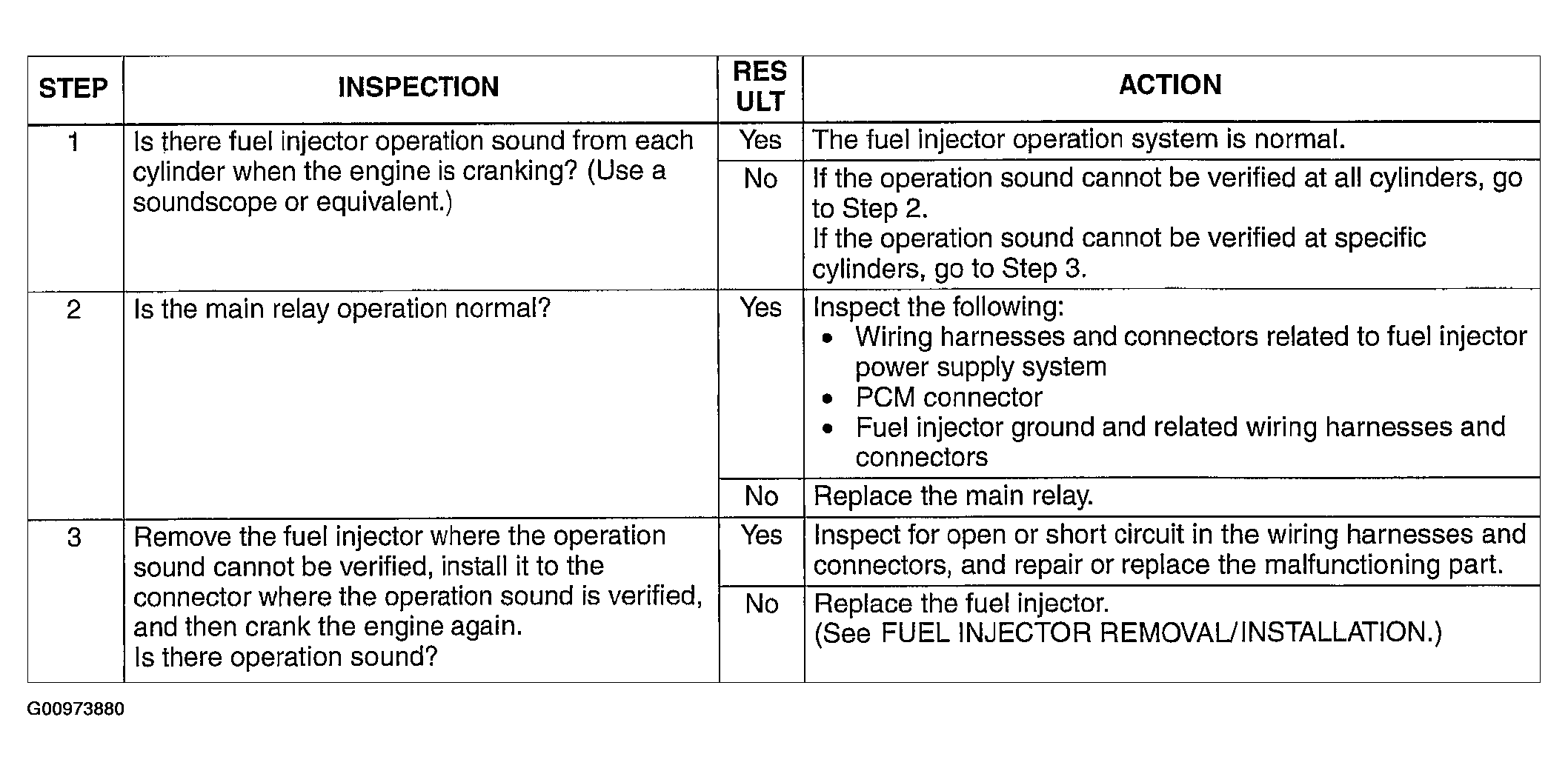

Fig 1: Fuel Injector Troubleshooting Table

Courtesy of MAZDA MOTORS CORP.
