Continuity Inspection

Remove the CPP switch.
Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the Circuit Open/Short Inspection .
- If there is any malfunction, replace the CPP switch.

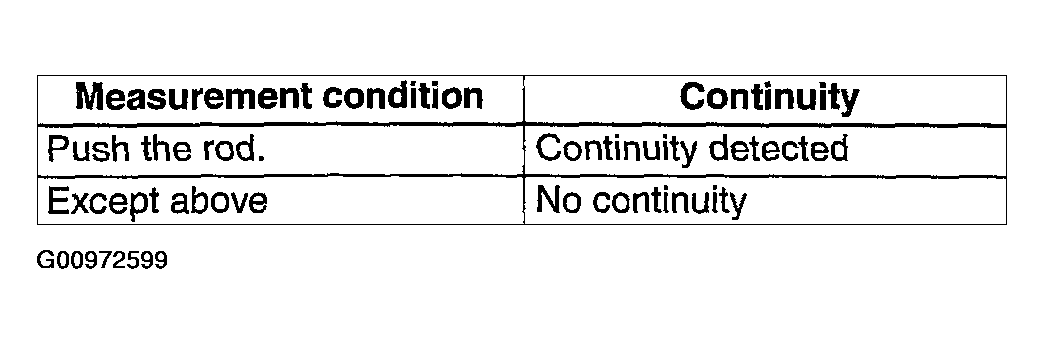

Fig 1: Clutch Pedal Position Switch Inspection Continuity Table
Courtesy of MAZDA MOTORS CORP.

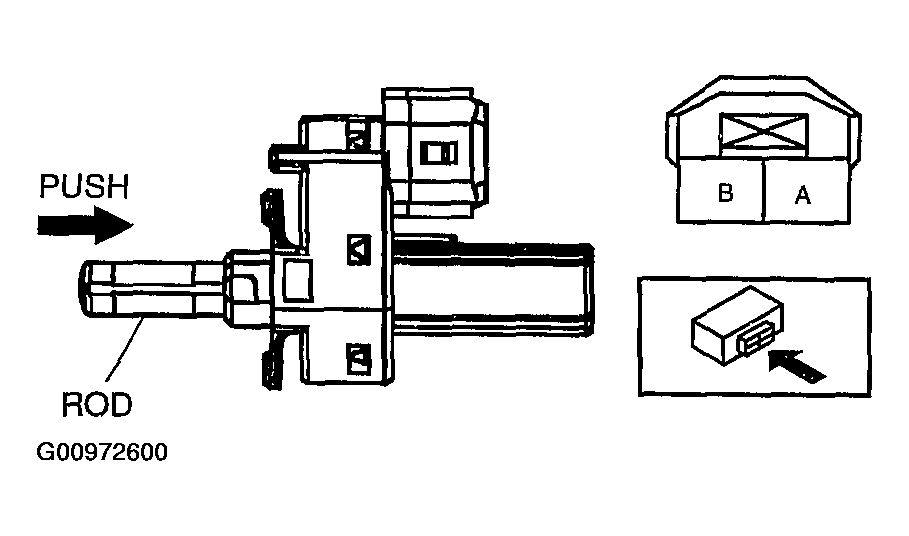

Fig 2: Identifying Clutch Pedal Position Switch & Terminals
Courtesy of MAZDA MOTORS CORP.
