Generator field coil control signal

PCM terminals

2AQ(+)-2AA(-)

Oscilloscope setting

• 0.5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up (engine speed approx. 650 rpm, no load)

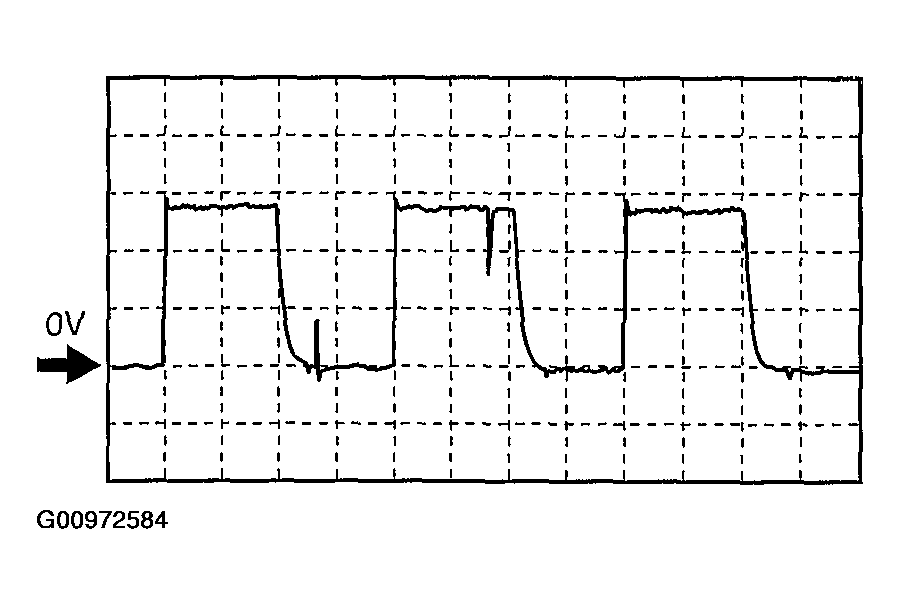

  Fig 1: Inspection Graph Of Generator Field Coil Control Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
