Diagnostic Procedure

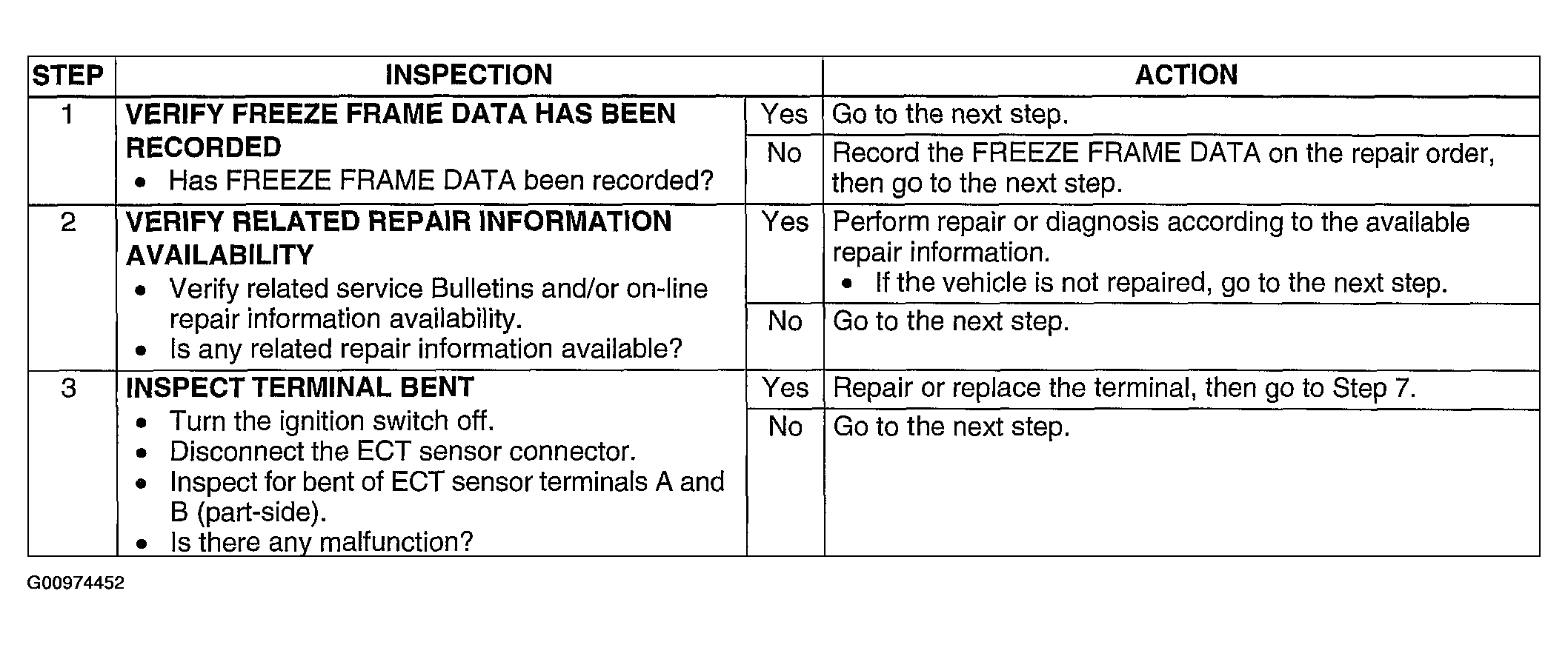

Fig 1: DTC P0117: Diagnostic Procedure Chart (Steps 1-3)
G00974452Courtesy of MAZDA MOTORS CORP.

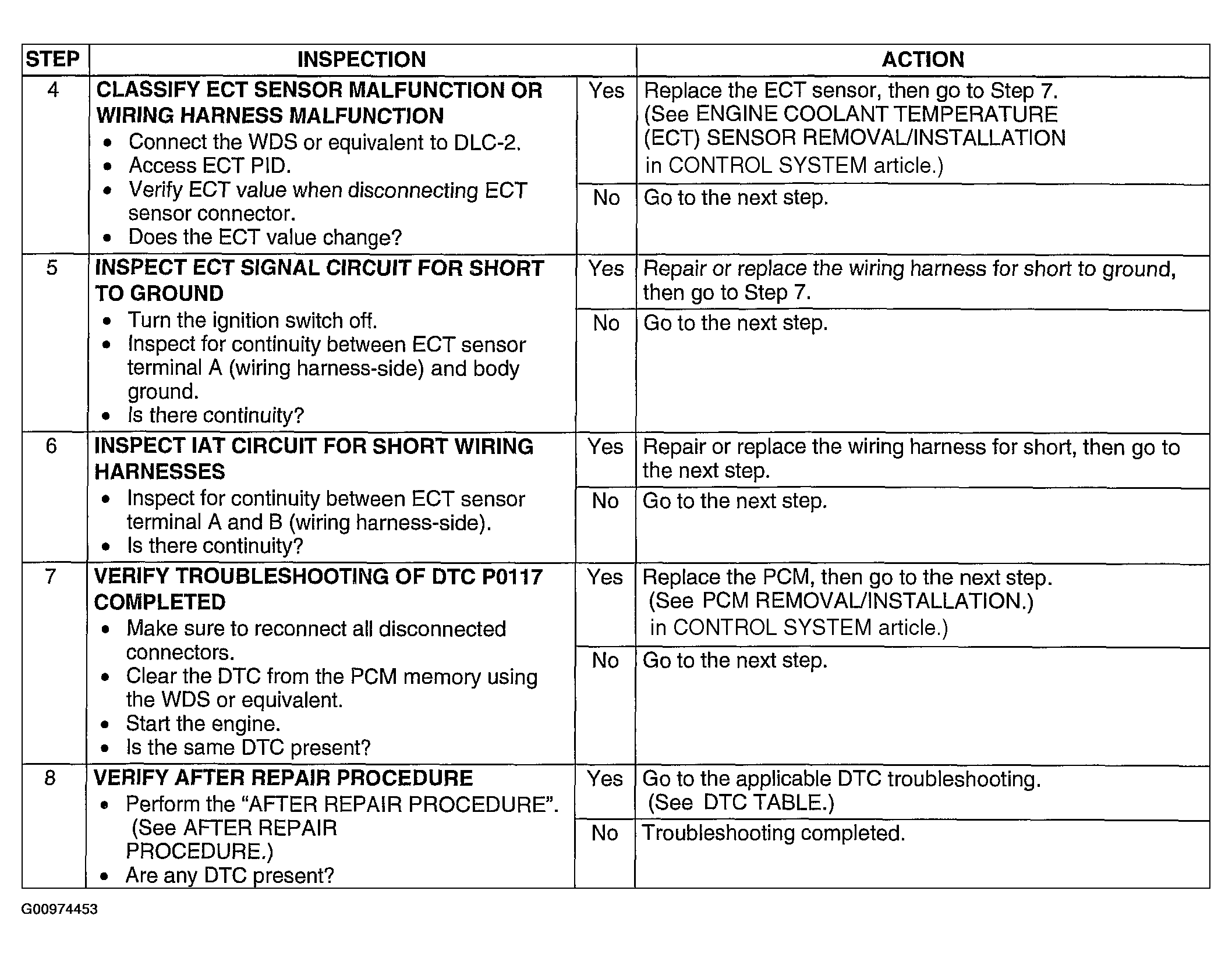

Fig 2: DTC P0117: Diagnostic Procedure Chart (Steps 4-8)
G00974453Courtesy of MAZDA MOTORS CORP.
