California Emission Regulation Applicable Module

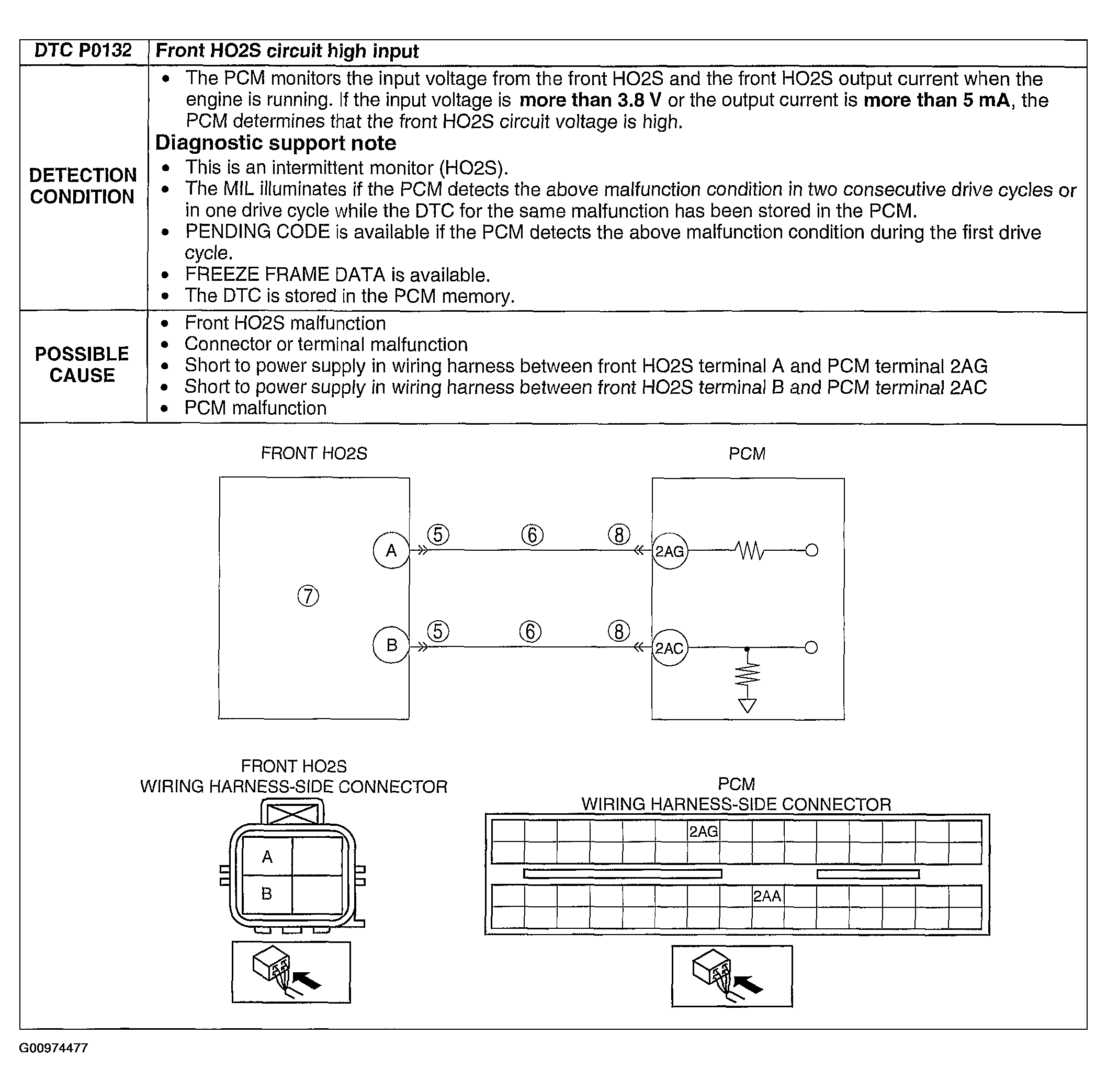

Fig 1: DTC P0132: Detection Condition & Possible Causes Chart
G00974477Courtesy of MAZDA MOTORS CORP.
