DTC P0301-P0304: Cylinder Misfire Detected: Notes

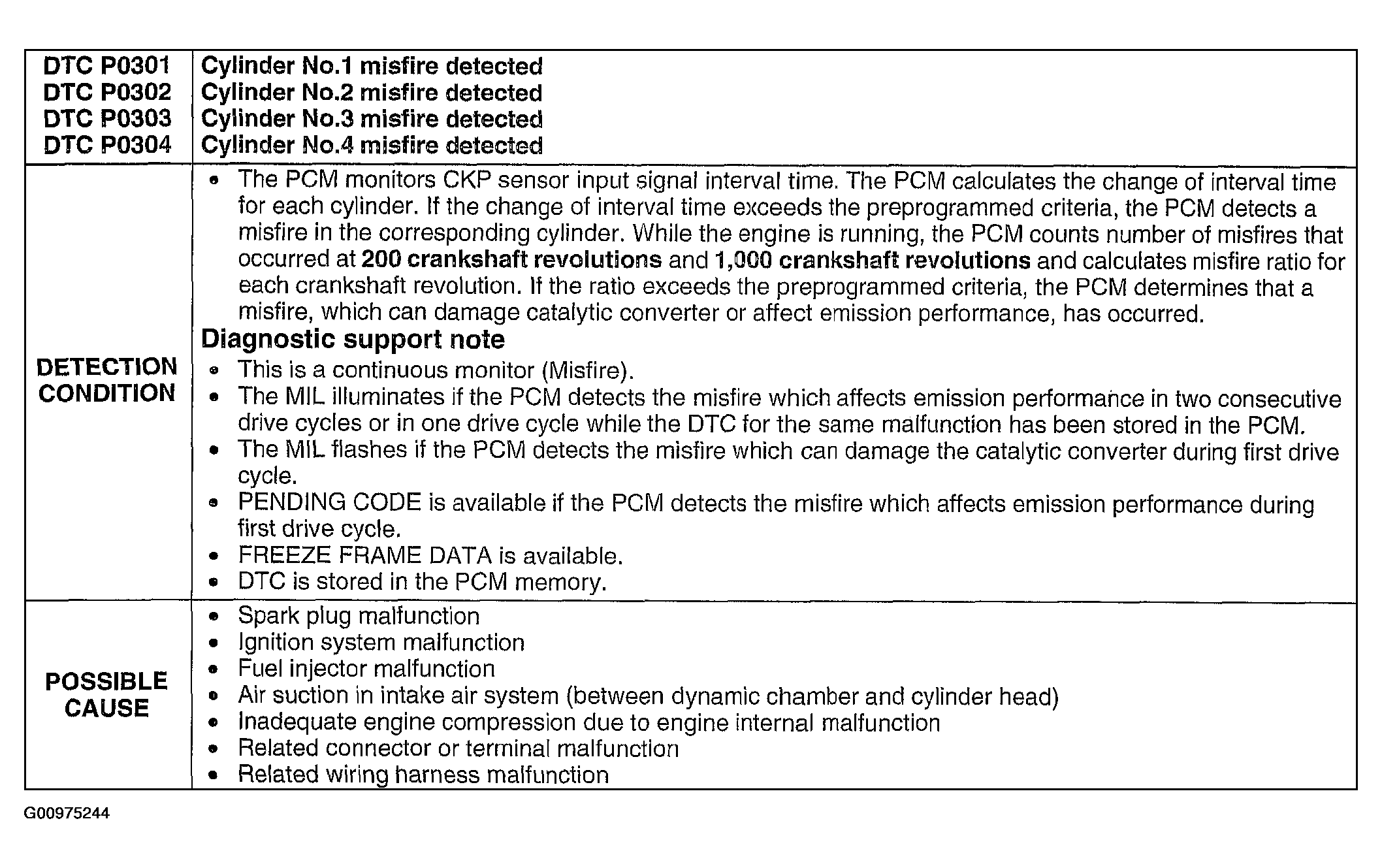

Fig 1: DTC P0301, P0302, P0303, P0304: Detection Condition & Possible Causes Chart
G00975244Courtesy of MAZDA MOTORS CORP.
