Door Lock Control Module ID Code Change

DOOR LOCK CONTROL MODULE ID CODE CHANGE

- When programming the ID code into a transmitter, verify that other transmitters are not being operated in the vicinity.

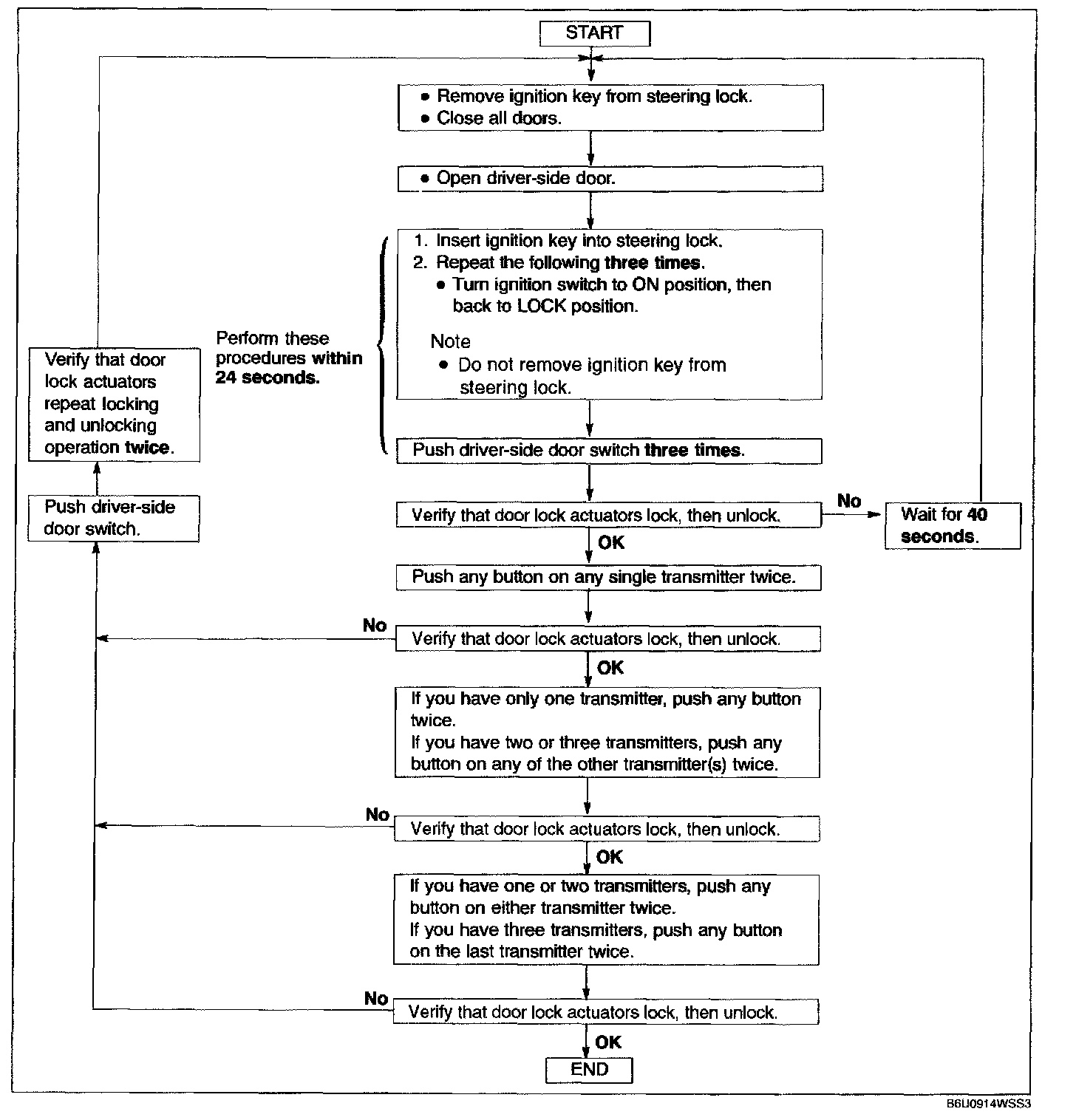

- Program the ID code as indicated in the procedure.
