Disassembly/Assembly

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY

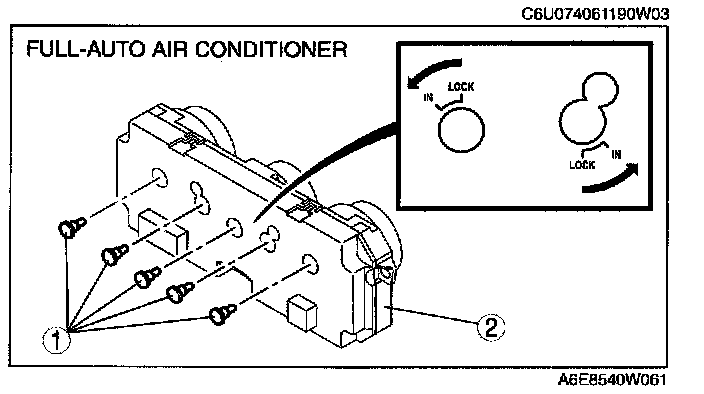

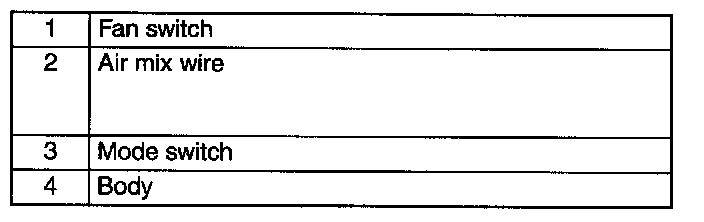

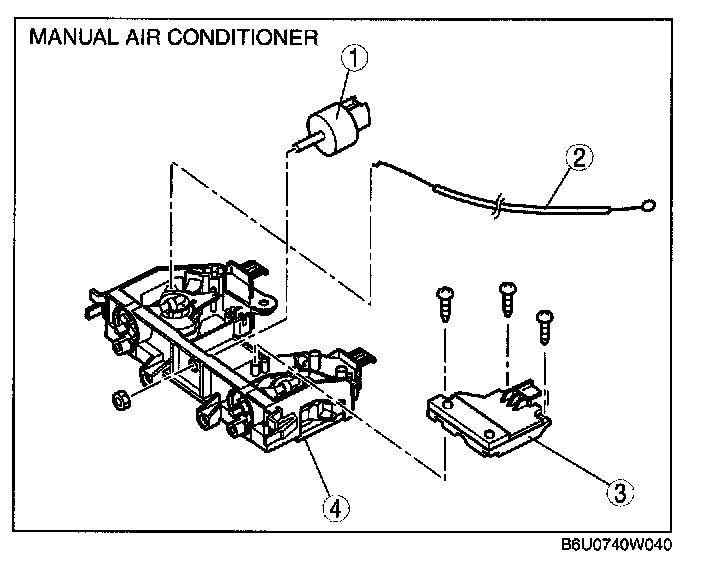

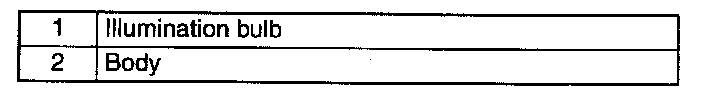

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Wire Disassembly Note

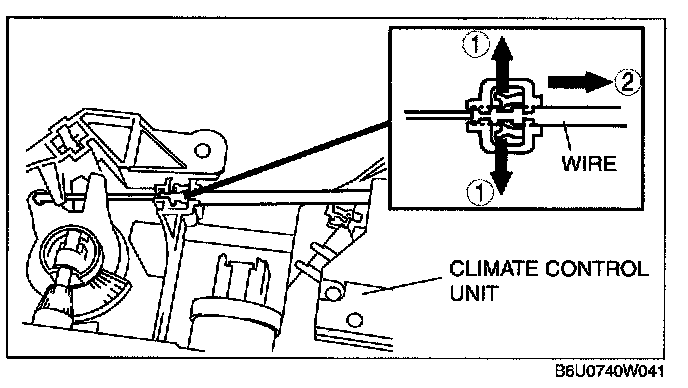

1. Disassemble the wire in the shown in the figure.

Wire Assembly Note

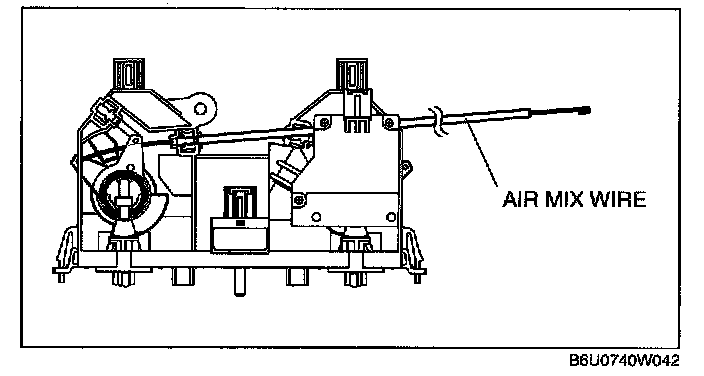

1. Assemble the wire to the position as shown in the figure.
