Freeze Frame PID Data Access Procedure

Freeze Frame PID Data Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

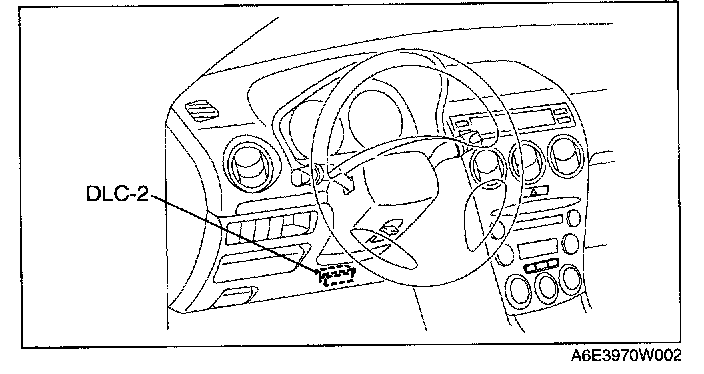

2. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located at the left side of the center console.
3. Record the FREEZE FRAME PID DATA by WDS or equivalent.
