Component Tests and General Diagnostics

Spark Test

1. Remove the fuel pump relay.
2. Verify that each high-tension lead and connector is connected properly.

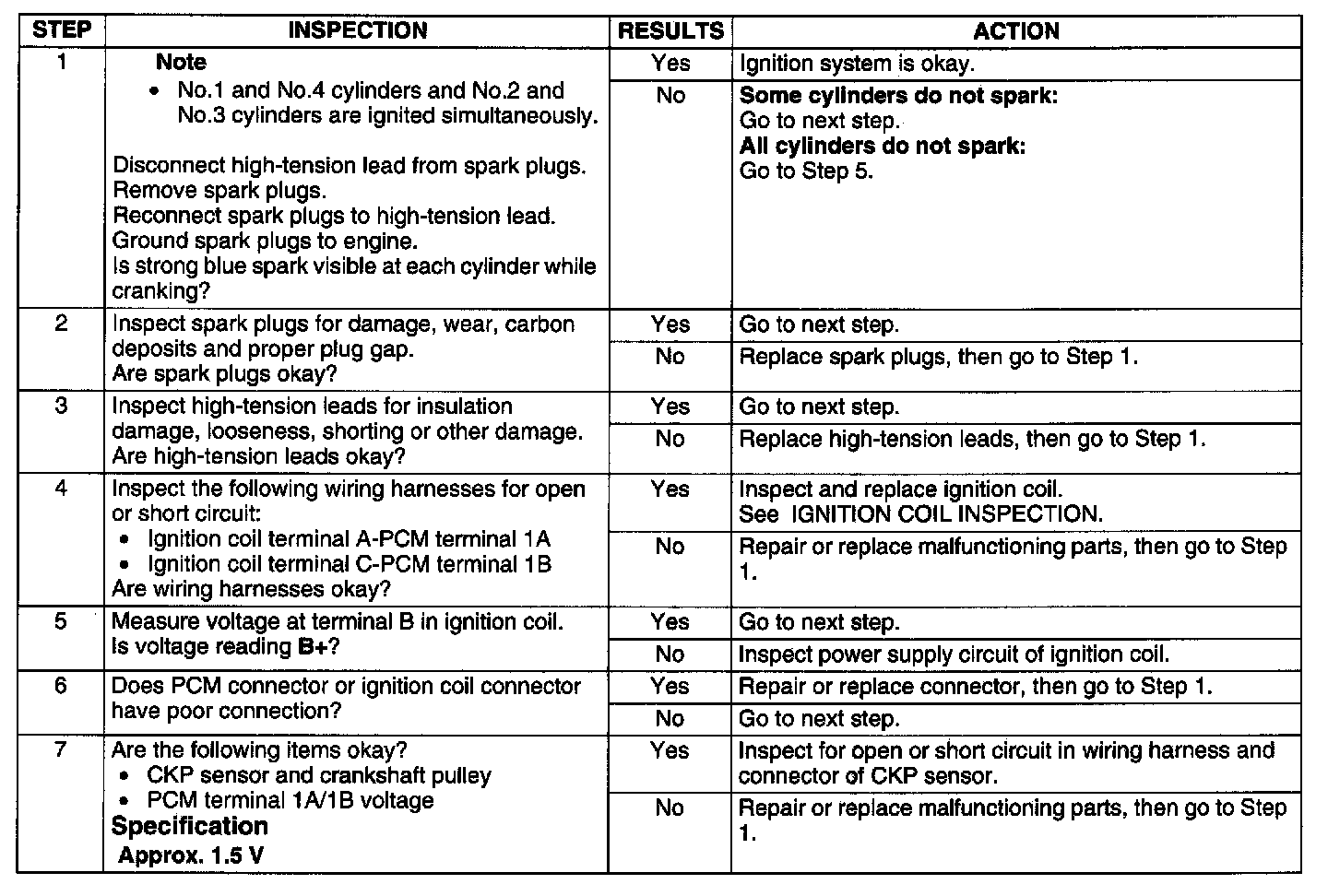

Step 1 - 7:

3. Inspect the ignition system using the given procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
