Technical Data

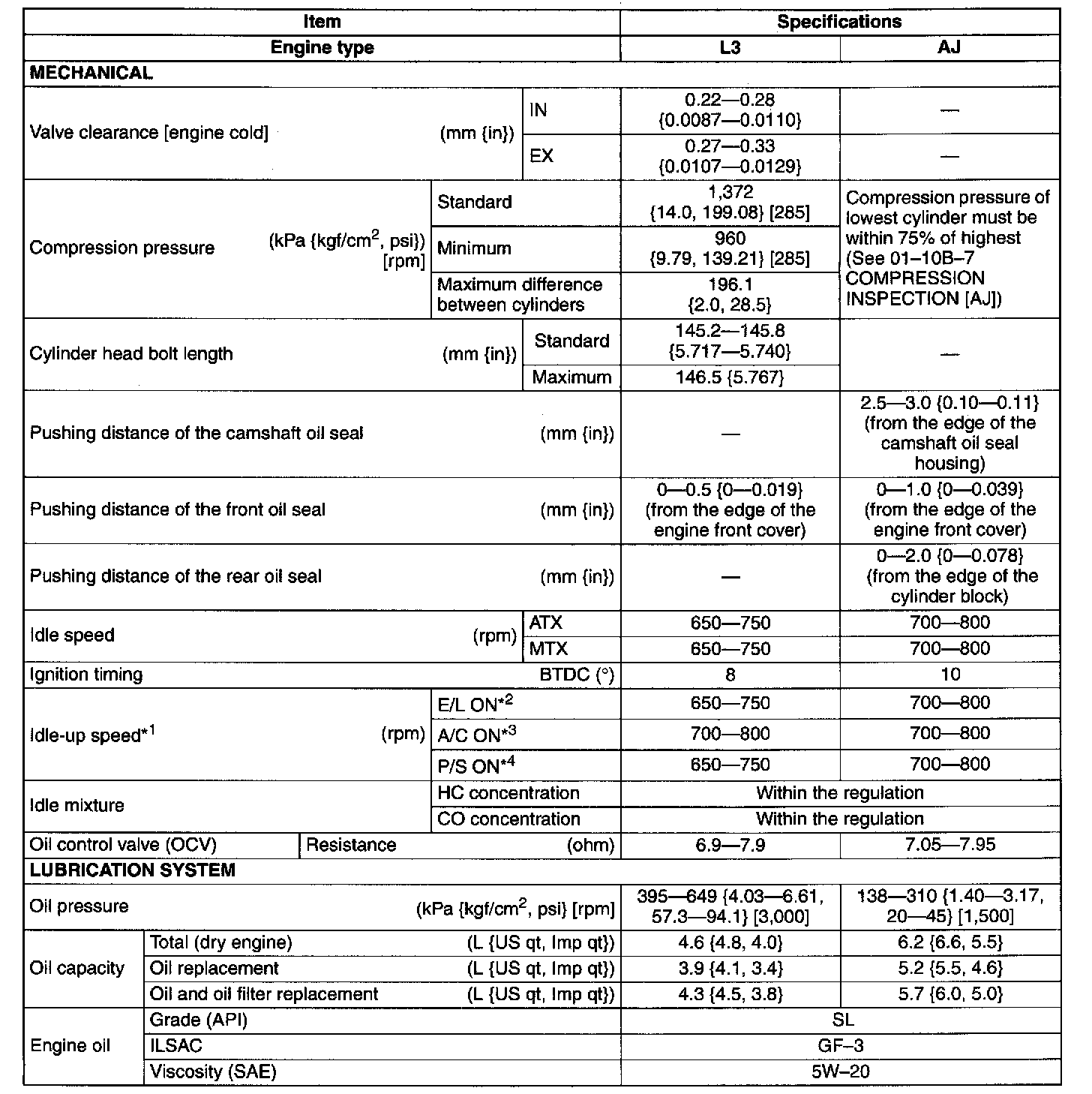

Part 1 L3 = 2.3L / AJ = 3.0L:

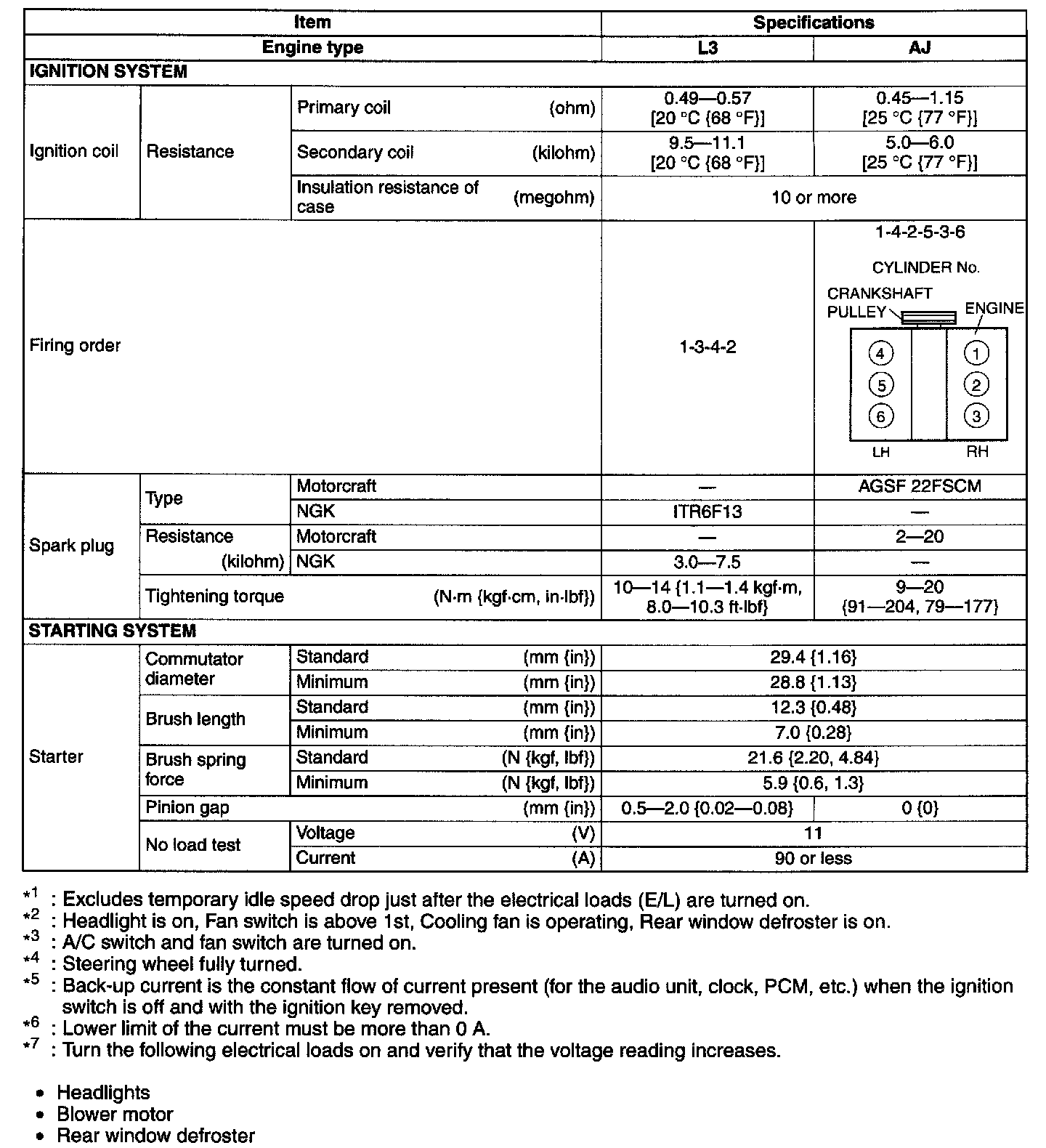

Part 2 L3 = 2.3L / AJ = 3.0L:

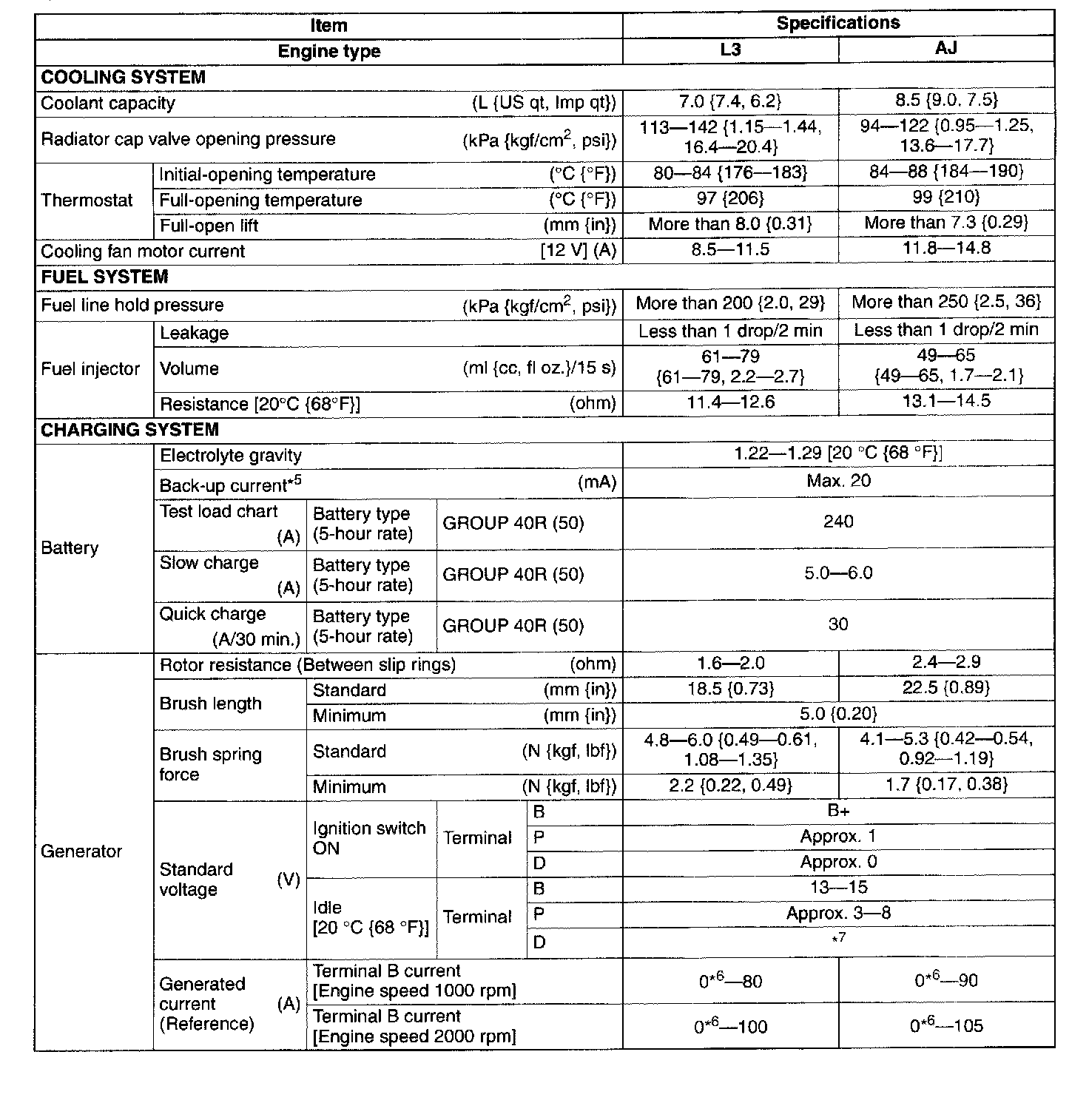

Part 3 L3 = 2.3L / AJ = 3.0L:
