TCS Off Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the illustration.

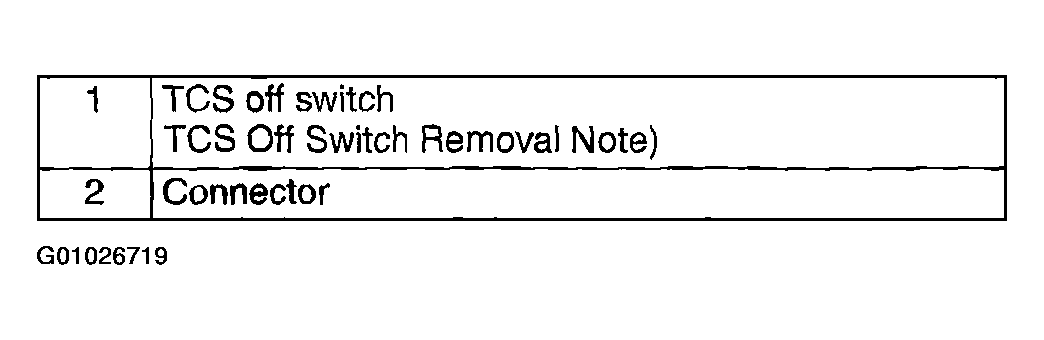

    Fig 1: Removal Order Of TCS Off Switch
    G01026719Courtesy of MAZDA MOTORS CORP.

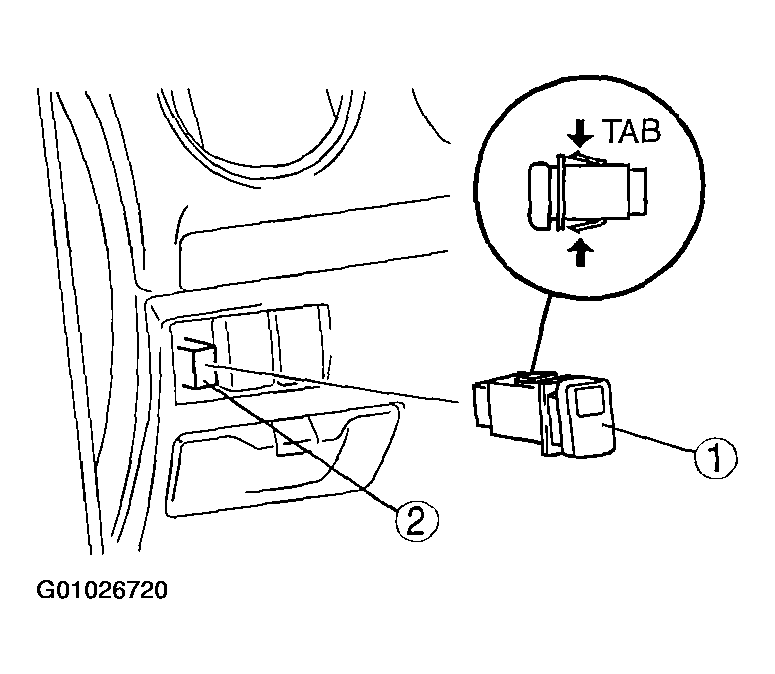

    Fig 2: Removing/Installing TCS Off Switch
    G01026720Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
