Control System Component Location Index

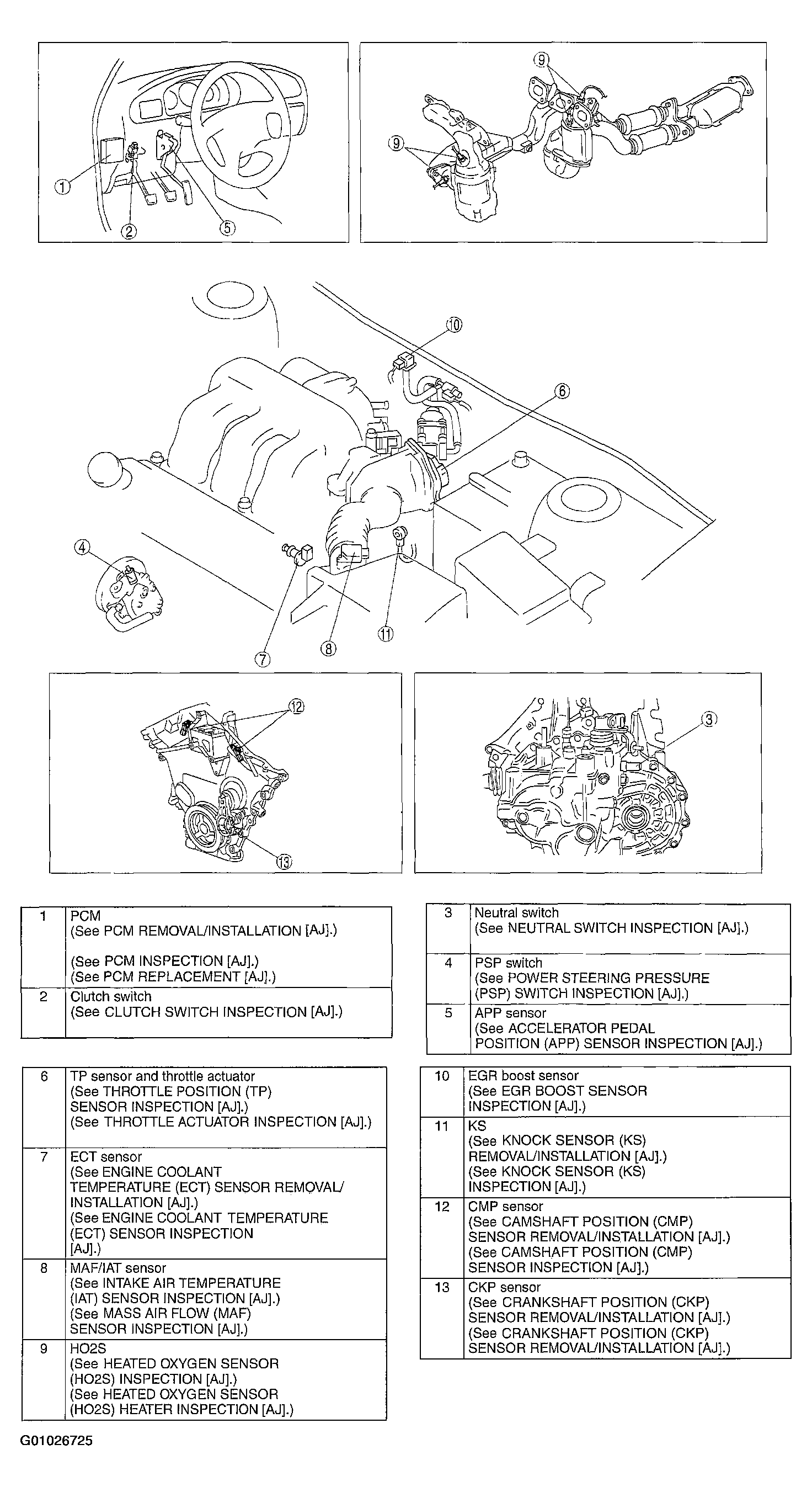

Fig 1: Control System Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
