Resistance Inspection: Notes
- Disconnect the negative battery cable.
- Disconnect the MAF/IAT sensor connector.

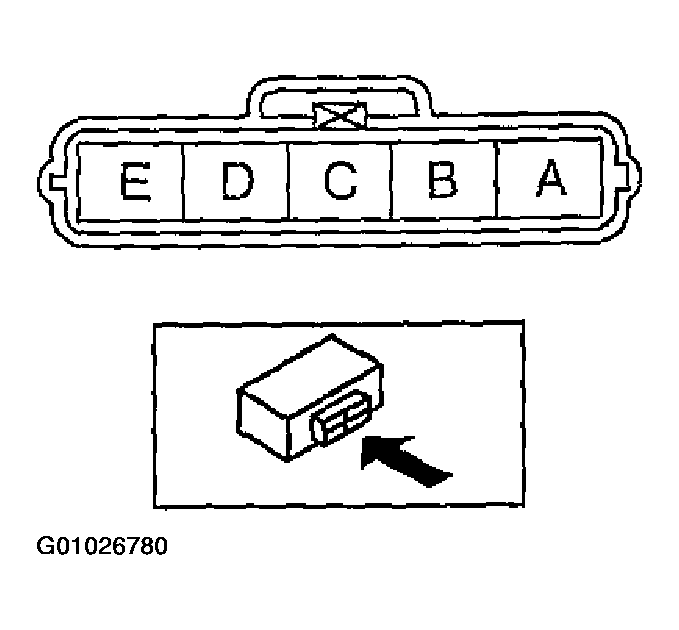

- Measure the resistance between the MAF/IAT sensor terminals D and E using an ohmmeter.
- If the IAT sensor is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
- If not as specified, replace the MAF/IAT sensor. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
