Pcm Inspection: Notes

  1. Connect the WDS or equivalent to the DLC-2.
  2. Turn the ignition switch to ON position.
  3. Measure the PID value.
    • If PID value is not within the specification, follow the instructions in Action column.

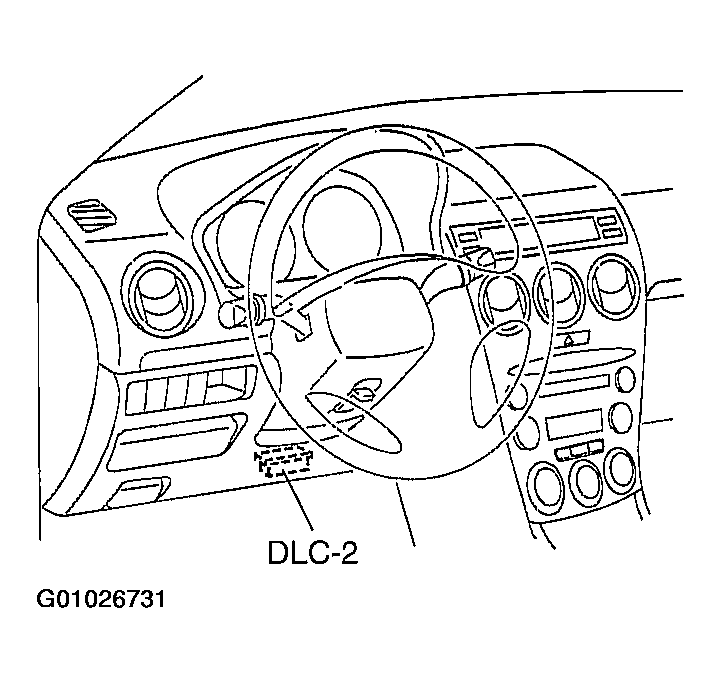

Fig 1: Locating DLC-2 Connector
G01026731Courtesy of MAZDA MOTORS CORP.

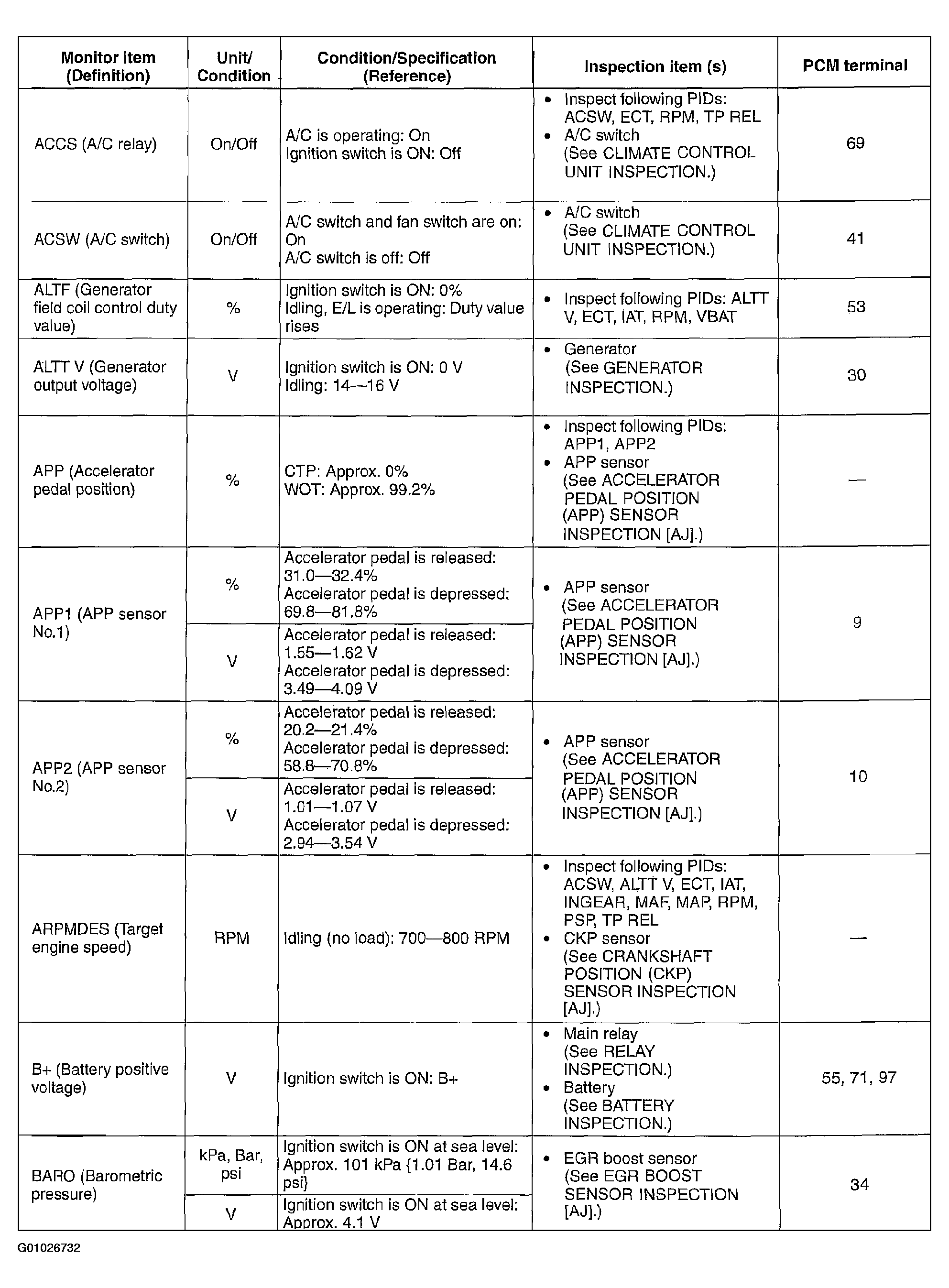

Fig 2: PID/DATA Monitor Reference Table (1 Of 7)
G01026732Courtesy of MAZDA MOTORS CORP.

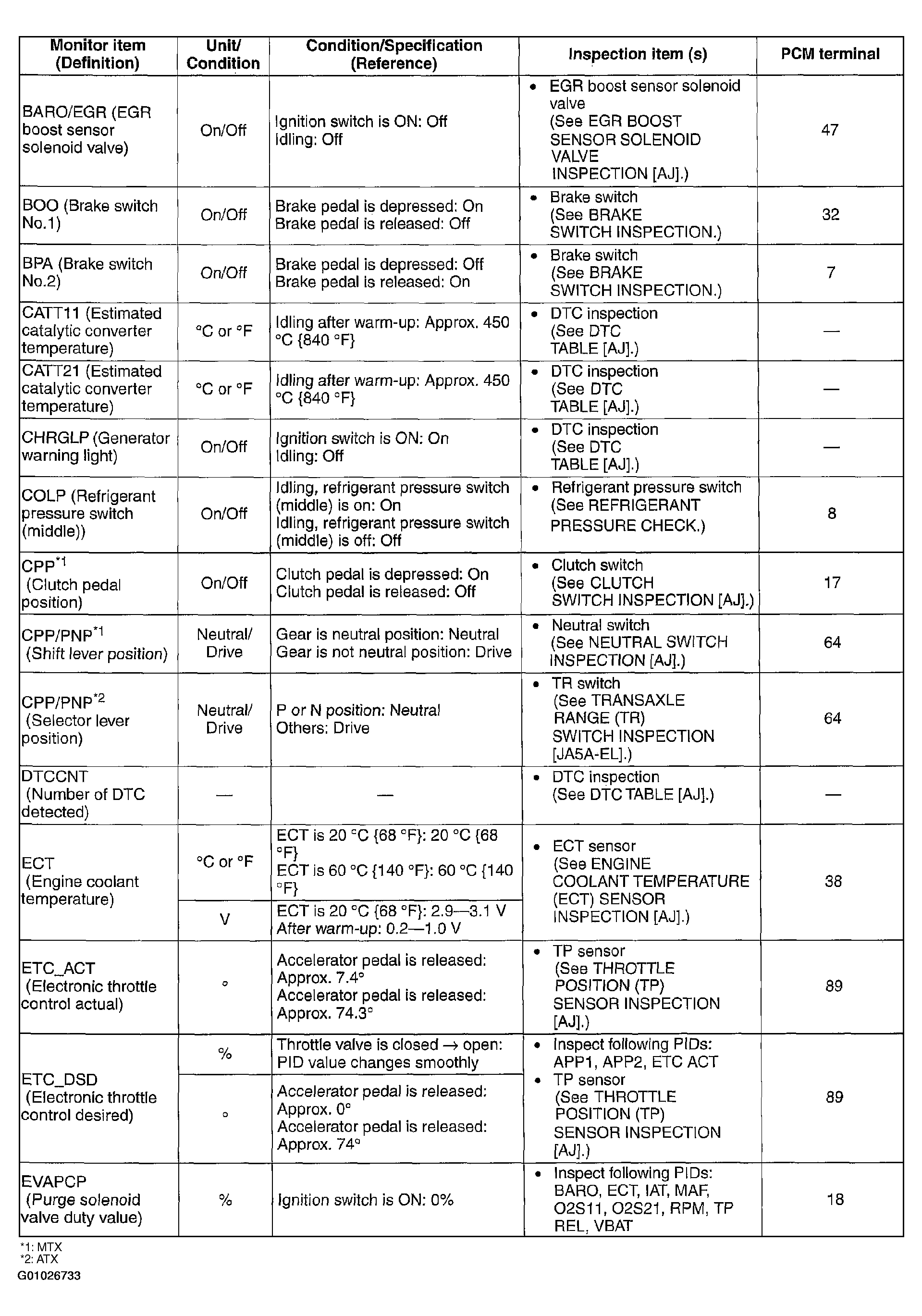

Fig 3: PID/DATA Monitor Reference Table (2 Of 7)
G01026733Courtesy of MAZDA MOTORS CORP.

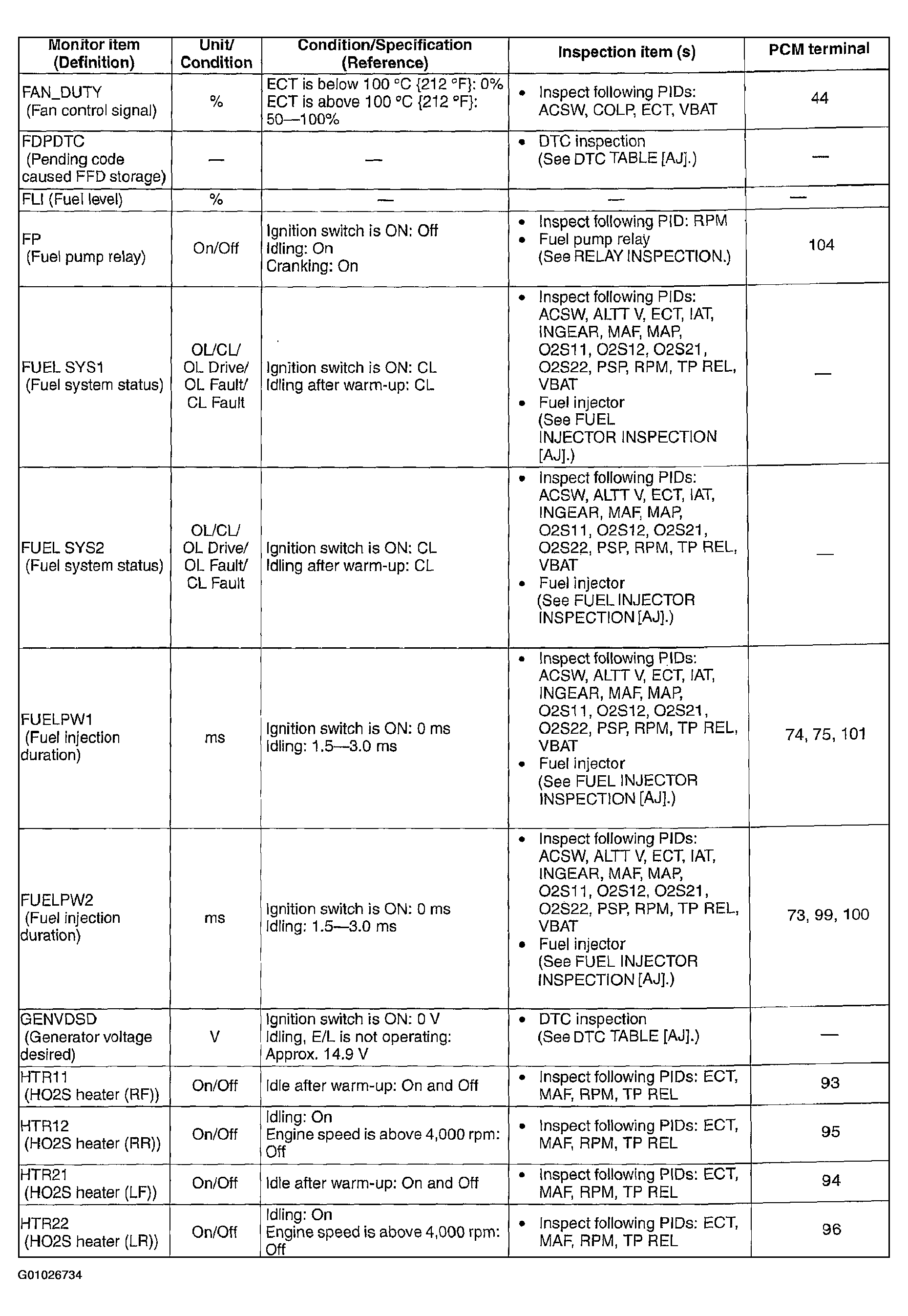

Fig 4: PID/DATA Monitor Reference Table (3 Of 7)
G01026734Courtesy of MAZDA MOTORS CORP.

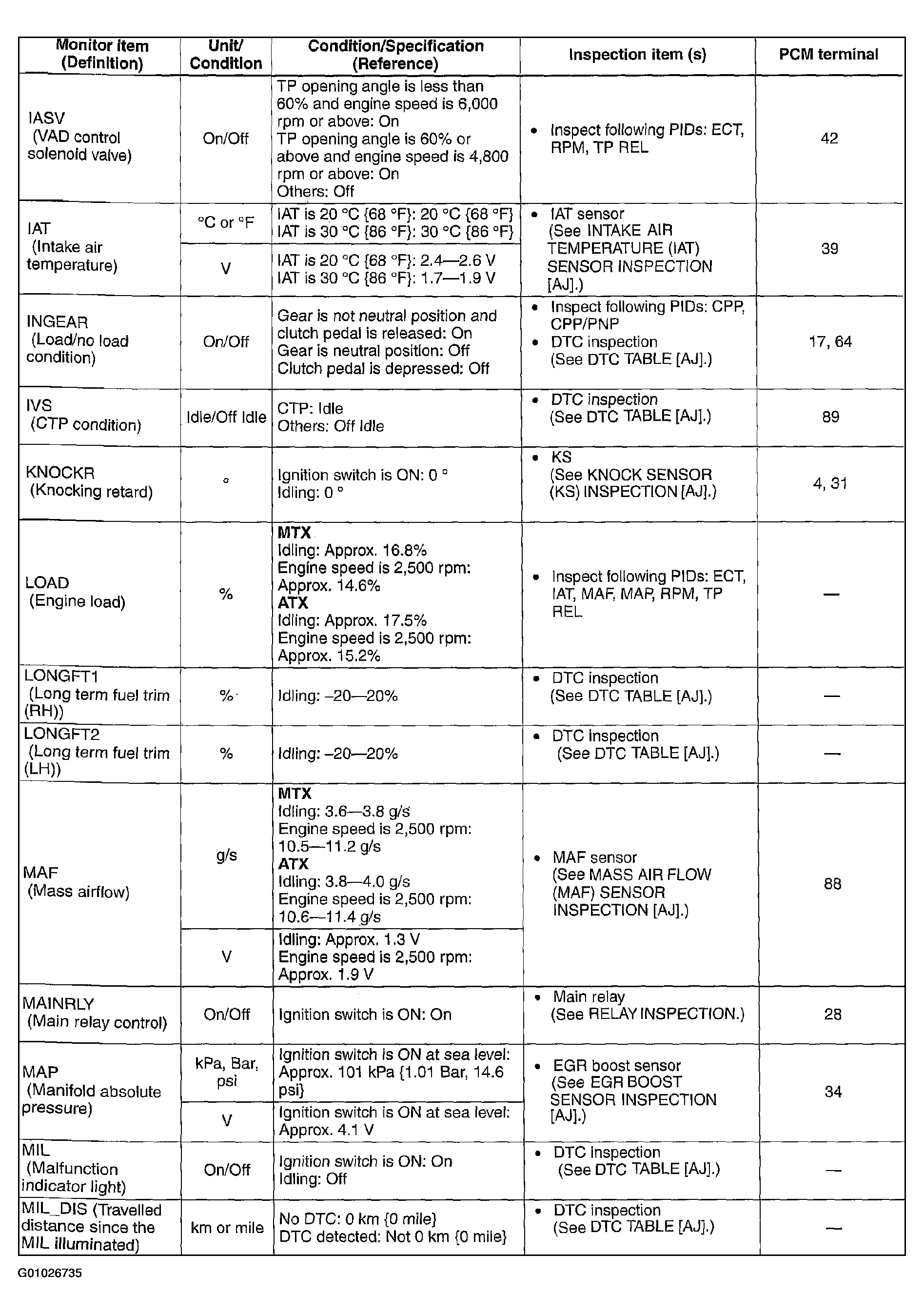

Fig 5: PID/DATA Monitor Reference Table (4 Of 7)
G01026735Courtesy of MAZDA MOTORS CORP.

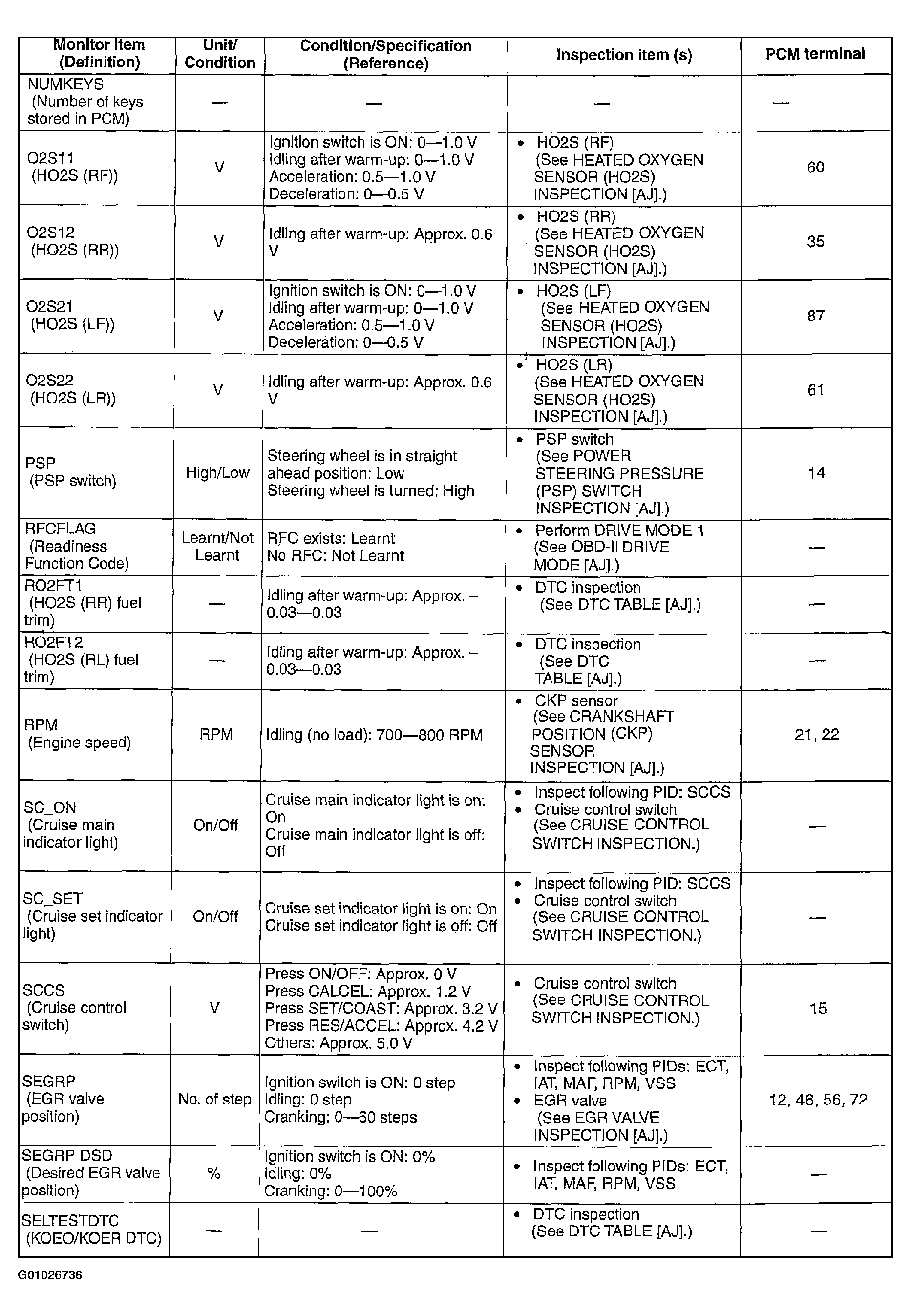

Fig 6: PID/DATA Monitor Reference Table (5 Of 7)
G01026736Courtesy of MAZDA MOTORS CORP.

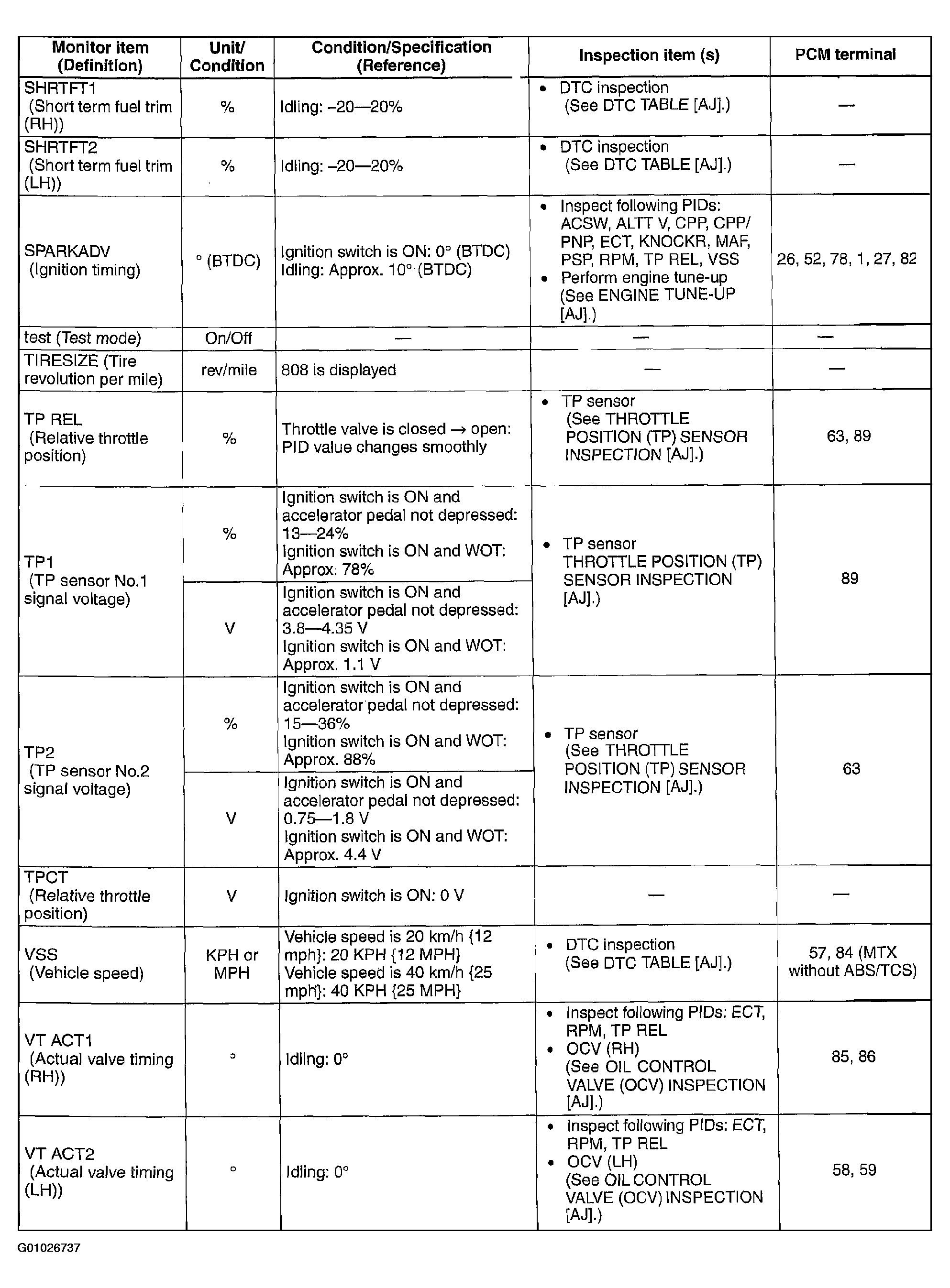

Fig 7: PID/DATA Monitor Reference Table (6 Of 7)
G01026737Courtesy of MAZDA MOTORS CORP.

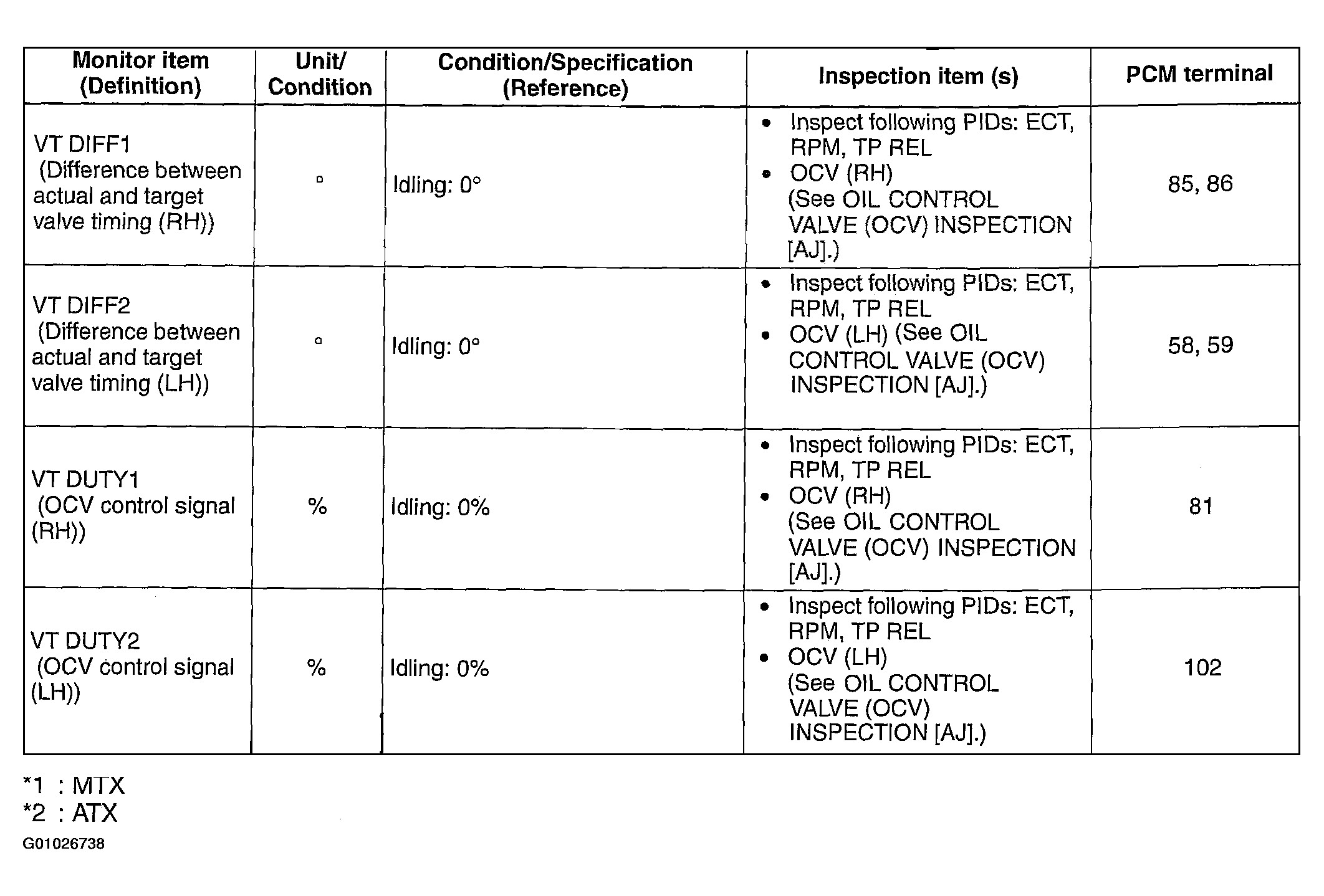

Fig 8: PID/DATA Monitor Reference Table (7 Of 7)
G01026738Courtesy of MAZDA MOTORS CORP.
